Adjustable Hinge Set - Hot Dipped Galvanised - 600mm
Adjustable Hinge Set - Hot Dipped Galvanised - 600mm
SKU:AS003-AFH600G
Couldn't load pickup availability

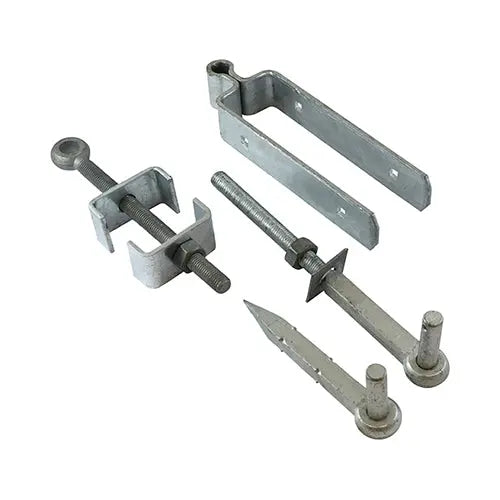

Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. Depending on the weight distribution.
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
| Brand | TIMCO |
| Carton Qty (packs) | 4 |
| Corrosion Rating (1-5) | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Feature 1 | Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off |
| Feature 2 | Hooks to drive are barbed, preventing the gate from working loose |
| Finish | Hot Dipped Galvanised |
| Gate Eye Ø x L (mm) | M19 x 250 |
| Heel Clip Size L x W x D (mm) | 86 x 50 x 32 |
| Hook to Bolt Ø x L (mm) | M20 x 350 |
| Hook to Drive Size (mm) | 215 x 22 |
| Material | Carbon Steel |
| MOQ | 1 |
| MOQ Increment | 1 |
| No. of Carriage Bolts | 3 |
| No. of Nuts | 3 |
| No. of Washers | 3 |
| Nut Size (mm) | M10 |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 610 |
| Pack Qty | 1 |
| Pack Type | Plain Bag |
| Pack Weight (kg) | 6.46 |
| Pin Ø (inch) | 3⁄4 |
| Pin Ø (mm) | 19 |
| Strap T (mm) | 6 |
| To Fit Carriage Bolt Ø (mm) | M10 |
| To Suit Gate T (inch) | 3 |
| To Suit Gate T (mm) | 75 |
| To Suit Gate W (ft) | 9 - 12 |
| To Suit Gate W (mm) | 2700 - 3600 |
| Top Strap L (inch) | 24 |
| Top Strap L (mm) | 600 |
| Washer Size (mm) | M10 |
| Washer Type | Form A |
