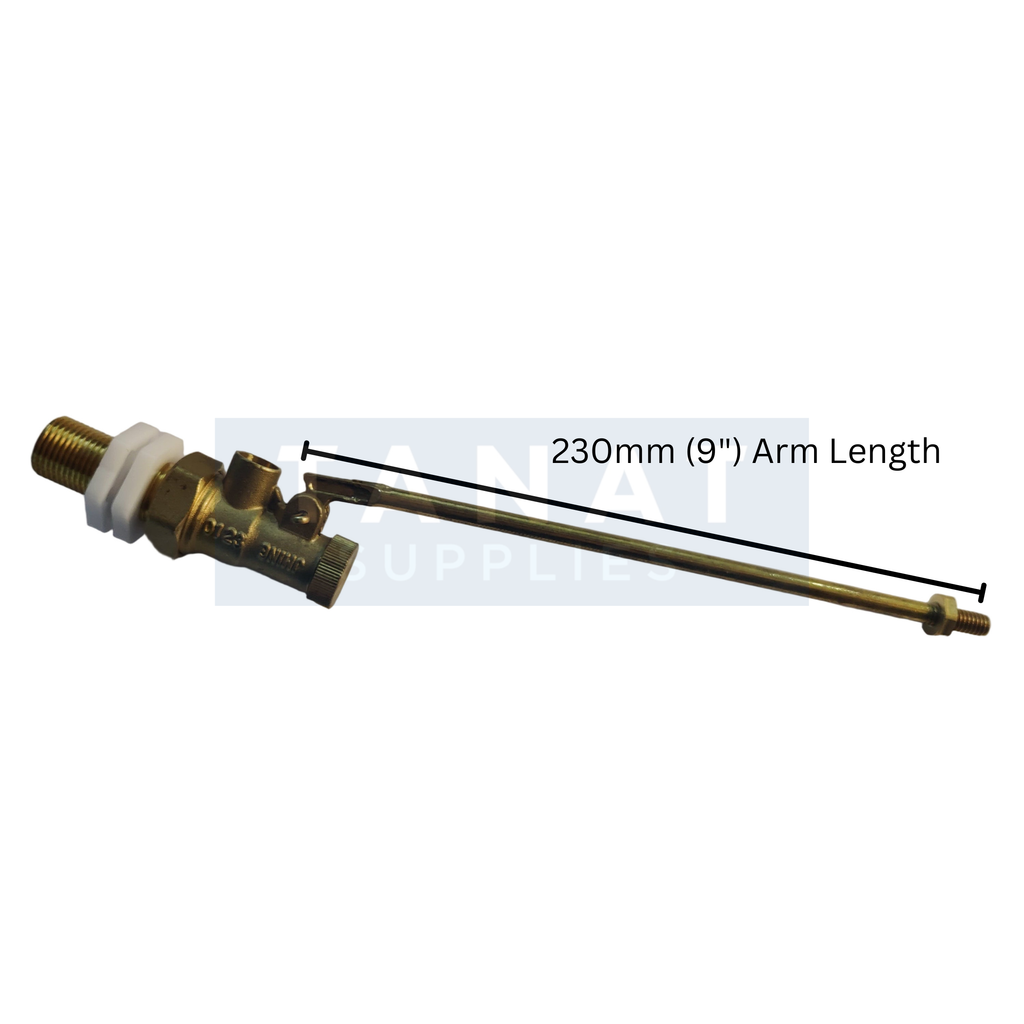

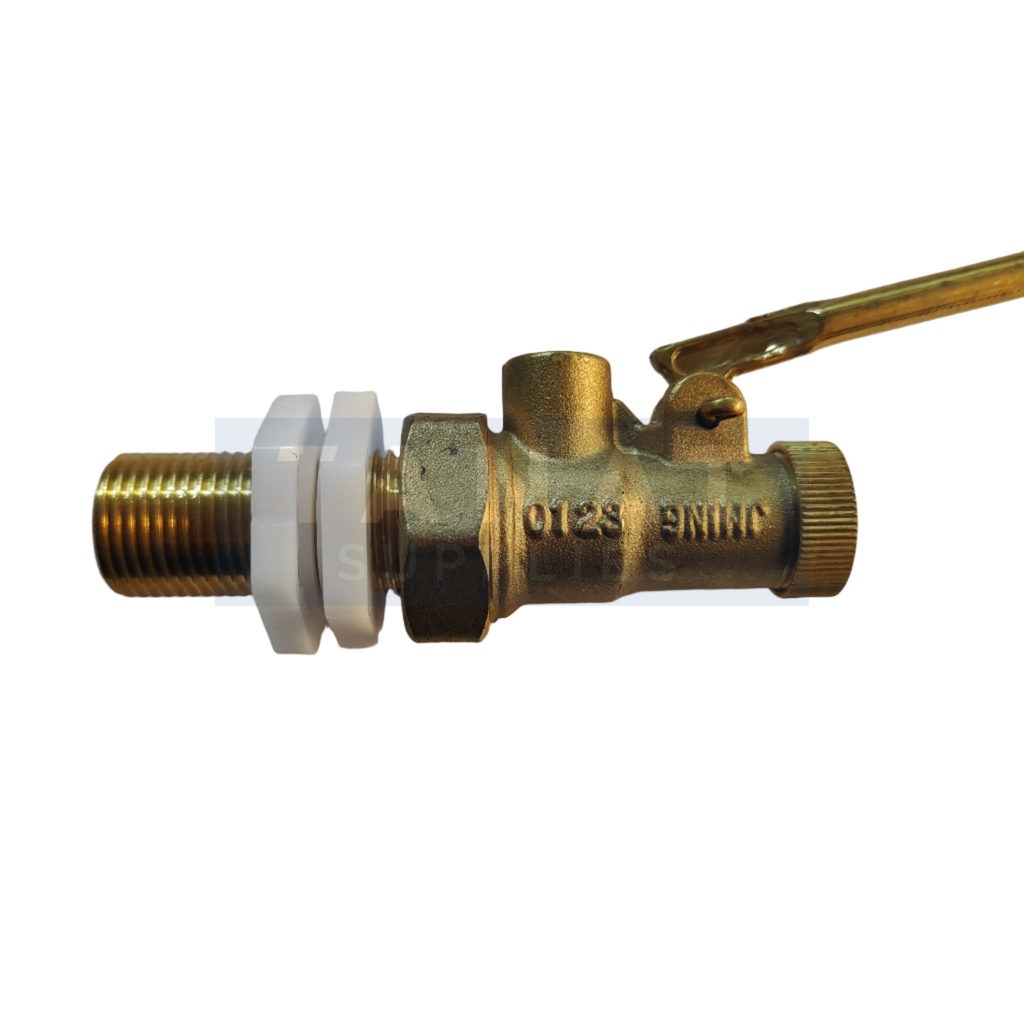

Brass Part 1 High Pressure Float Fill Valve 1/2"

Brass Part 1 High Pressure Float Fill Valve 1/2" (Valve & Arm Only)

Professional-grade brass float valve designed for high-pressure water systems. WRAS approved for use in potable water applications, this 1/2" BSP Part 1 valve provides reliable water level control in tanks and cisterns. Supplied as valve and arm only (float sold separately).

Key Features:

• WRAS approved - certified for drinking water use
• Part 1 specification - complies with water regulations
• High-pressure rated - 0.1 to 10 bar working pressure
• 1/2" BSP connection - standard fitting size
• All-brass construction - durable and corrosion-resistant
• Precision engineering - reliable shut-off and flow control
• Suitable for drinking water - safe for potable water systems
• Wide temperature range - operates from 5°C to 35°C

Benefits:

• WRAS certification - safe for drinking water systems
• Wide pressure range - works from low to high mains pressure
• Durable brass construction - resists corrosion and wear
• Reliable operation - consistent water level control
• Professional quality - suitable for commercial and domestic use
• Easy installation - standard 1/2" BSP thread
• Regulation compliant - meets UK water bylaws

Applications:

• Cold water storage tanks and cisterns
• Loft tanks and header tanks
• Livestock water troughs and drinkers
• Agricultural water systems
• Commercial water tanks
• Industrial water storage
• Expansion vessels

Technical Specifications:

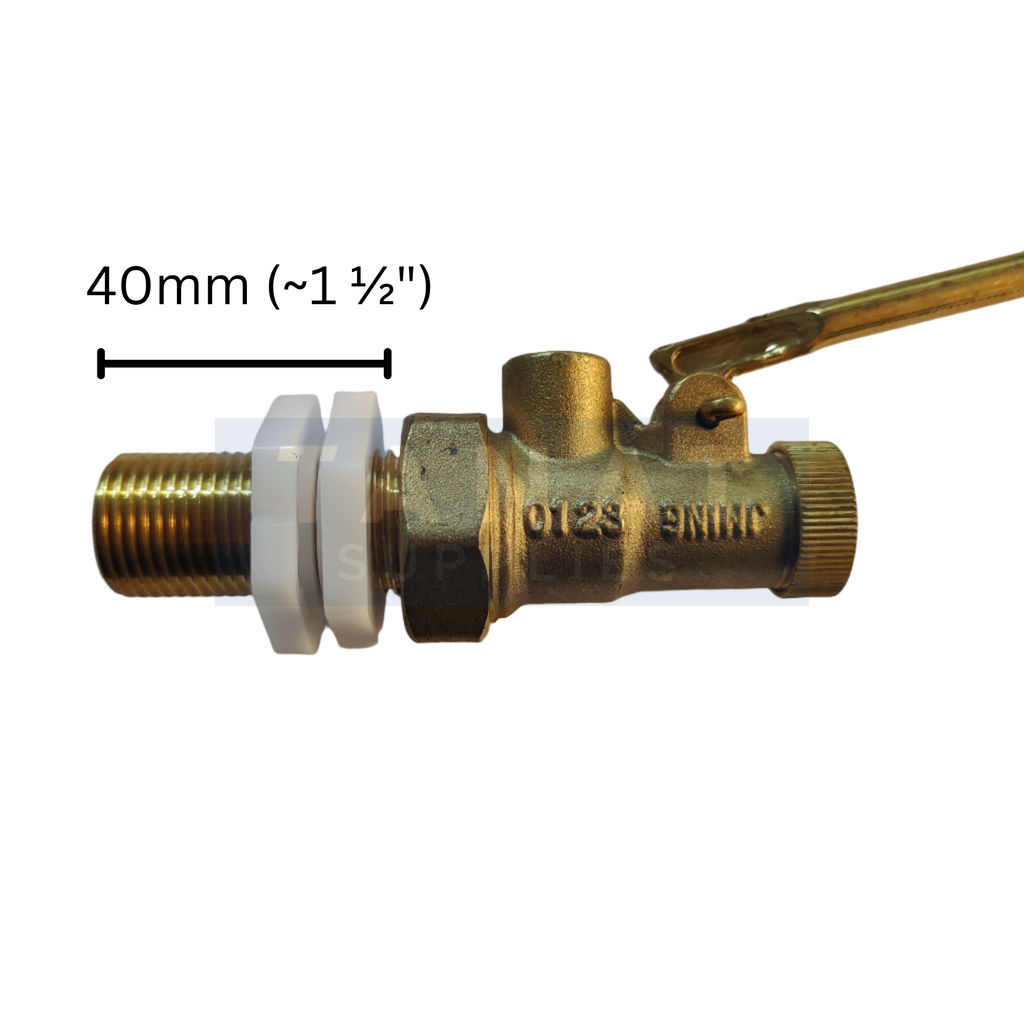

• Connection Size: 1/2" BSP (British Standard Pipe)
• Material: Brass
• Type: Part 1 float valve
• Working Pressure: 0.1 to 10 bar
• Water Temperature Range: 5°C to 35°C
• Certification: WRAS approved
• Suitable for: Potable water / drinking water systems

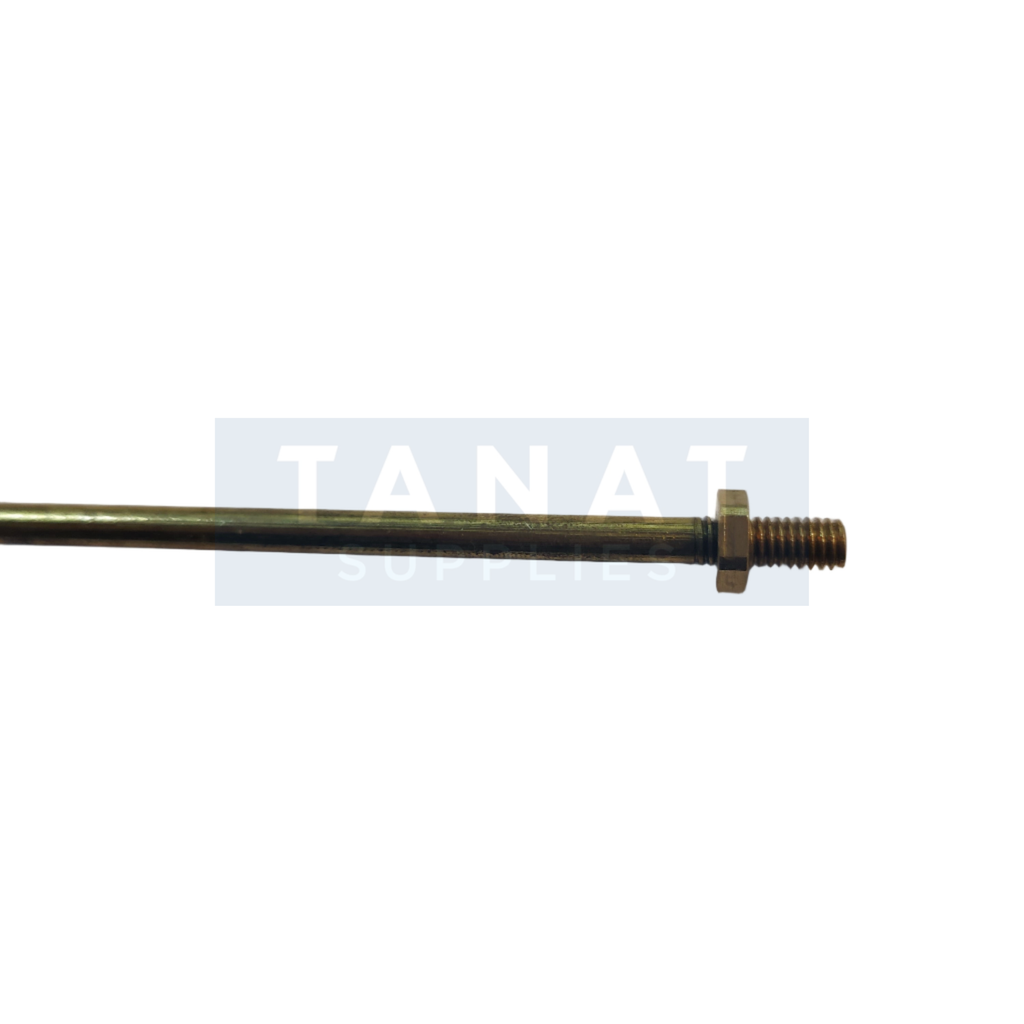

• Supplied: Valve and arm only (float not included)

What is WRAS Approval?

WRAS (Water Regulations Advisory Scheme) approval means this valve meets strict UK water regulations and is certified safe for use with drinking water. This certification ensures the valve won't contaminate water supplies and complies with water bylaws.

What is Part 1 Specification?

Part 1 float valves are designed for standard installations where backflow prevention is provided elsewhere in the system. They offer reliable water level control and are suitable for most domestic and commercial water tank applications.

Important Note:

This product is supplied as valve and arm only. Float ball must be purchased separately (typically 115mm diameter for 1/2" valves).

Ensure reliable, regulation-compliant water level control with this professional-grade WRAS approved brass float valve - the trusted choice for high-pressure water systems.
