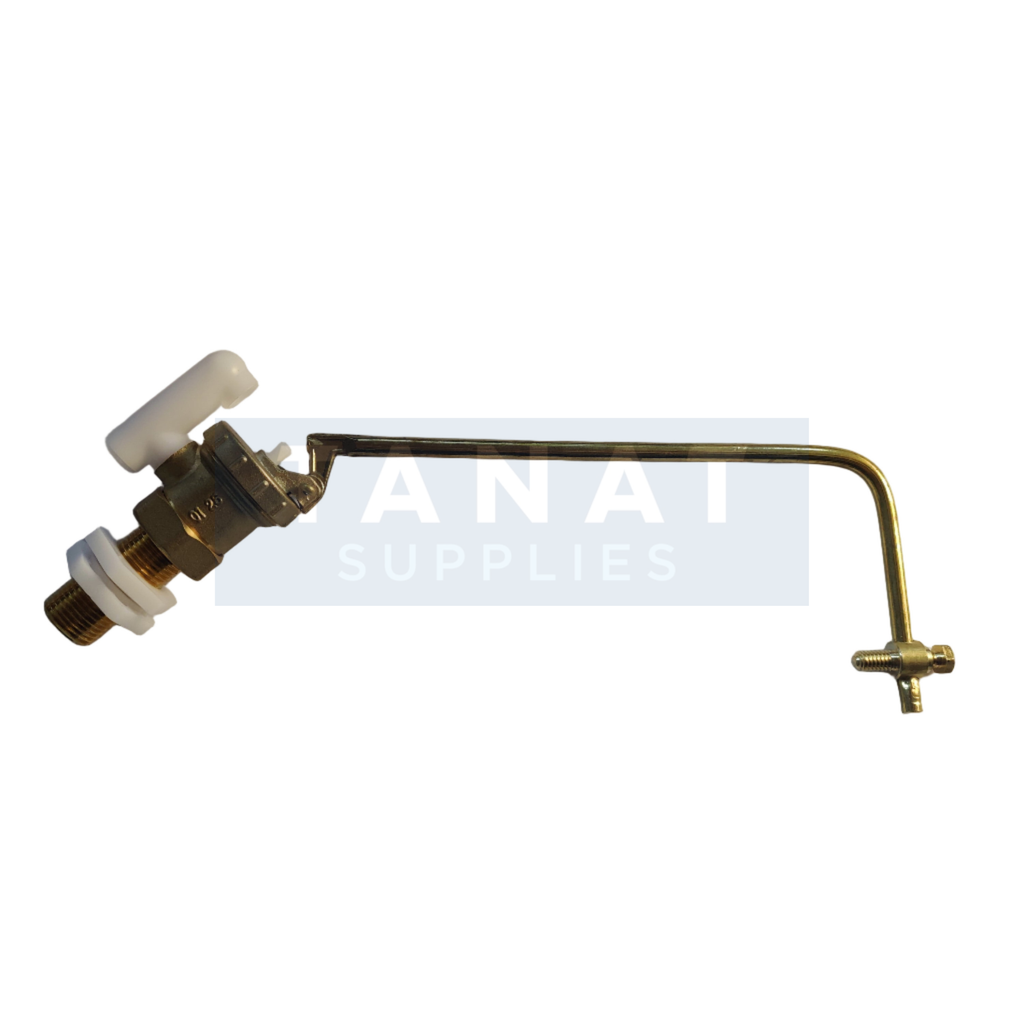

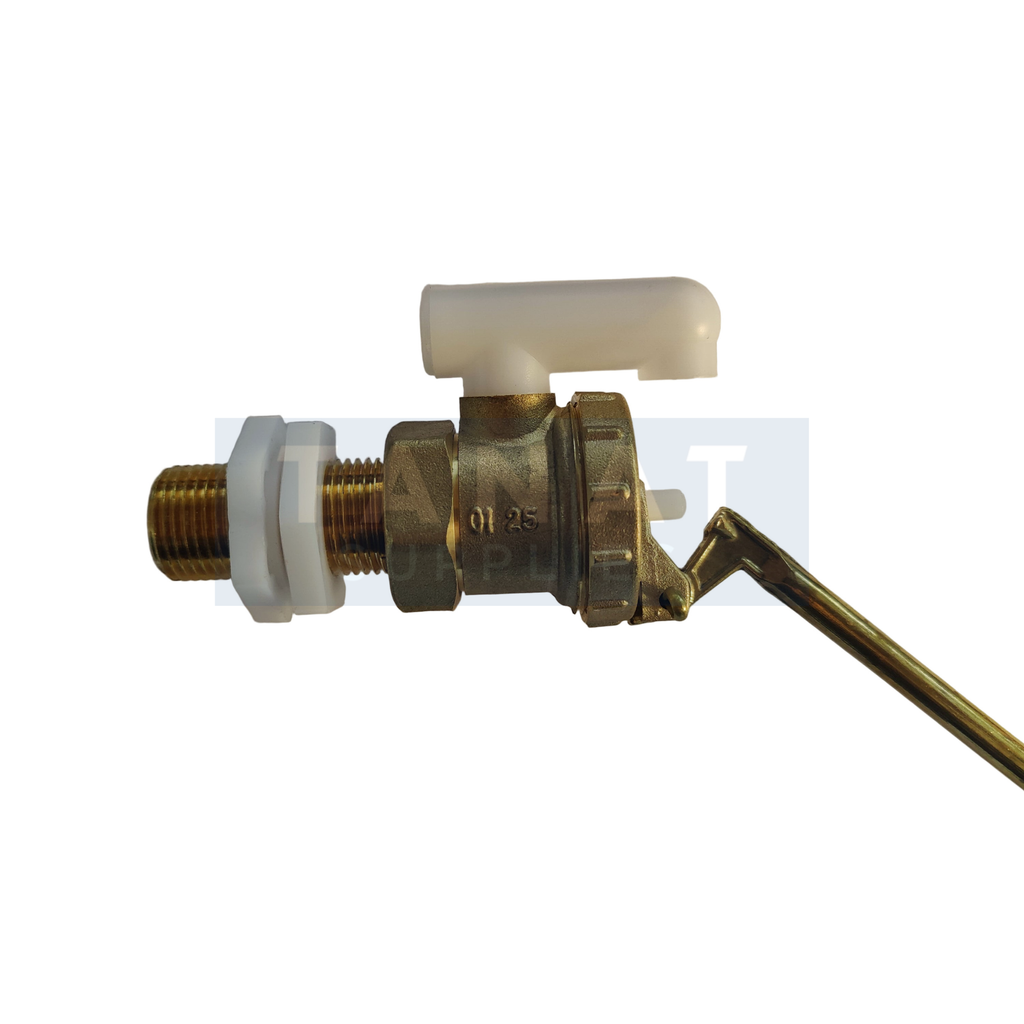

Brass Part 2 High Pressure Float Fill Valve 1/2"

Brass Part 2 High Pressure Float Fill Valve 1/2"

Professional side-entry float valve designed for high-pressure water systems. This Part 2 specification valve features a brass shank with plastic nut and built-in backflow prevention, making it ideal for household water tanks and cisterns operating at mains pressure.

Key Features:

• Part 2 specification - includes backflow prevention
• Side-entry design - fits through tank wall

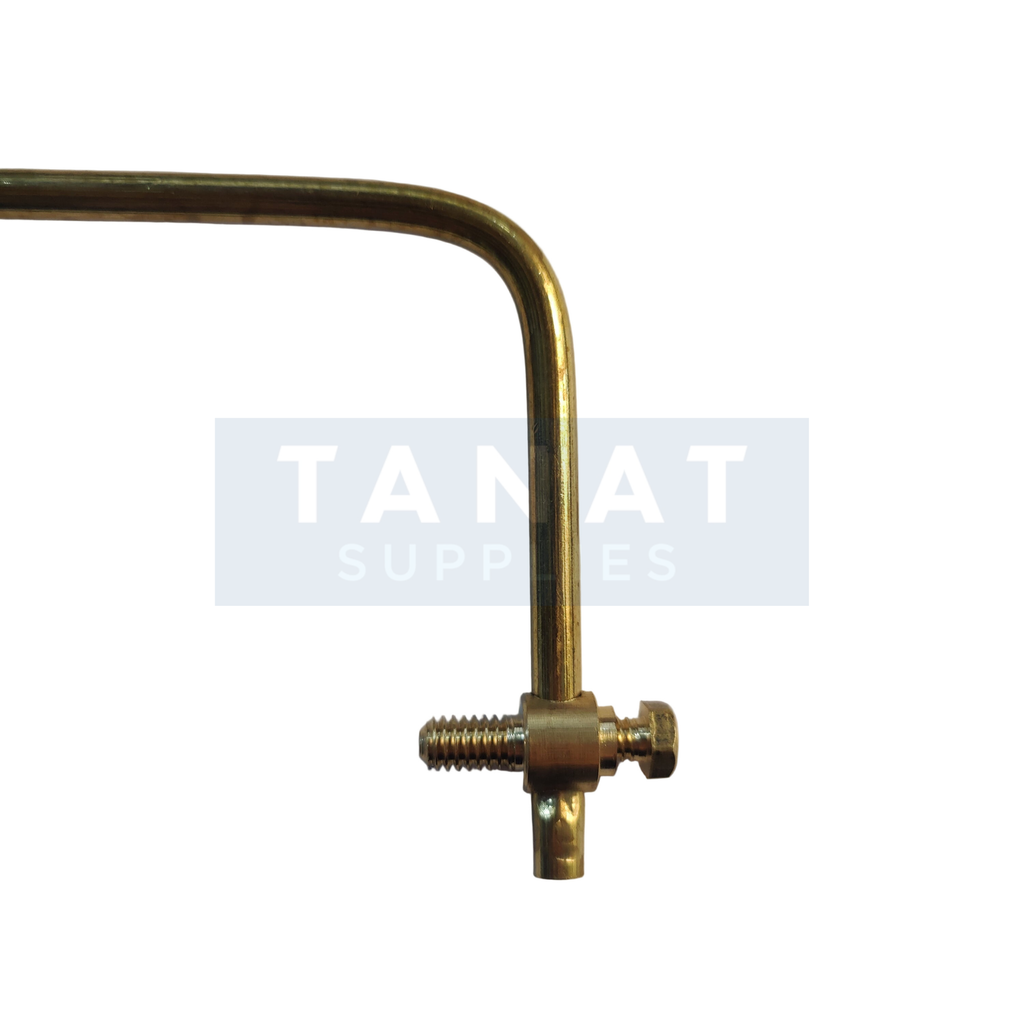

• 1/2" float connection - standard size
• Brass shank construction - durable and corrosion-resistant
• Plastic securing nut - easy installation
• High-pressure rated - 0.1 to 10 bar working pressure
• Suitable for drinking water - safe for potable water systems
• Backflow prevention - protects water supply from contamination

Benefits:

• Regulation compliant - Part 2 meets UK water regulations
• Wide pressure range - works from low to high mains pressure
• Backflow protection - prevents contamination of water supply
• Durable brass construction - long-lasting performance
• Easy installation - side-entry design with plastic nut
• Safe for drinking water - suitable for potable water tanks

Applications:

• Household cold water storage tanks
• Loft tanks and cisterns
• Header tanks
• Expansion vessels
• Domestic water systems
• Commercial water storage

Technical Specifications:

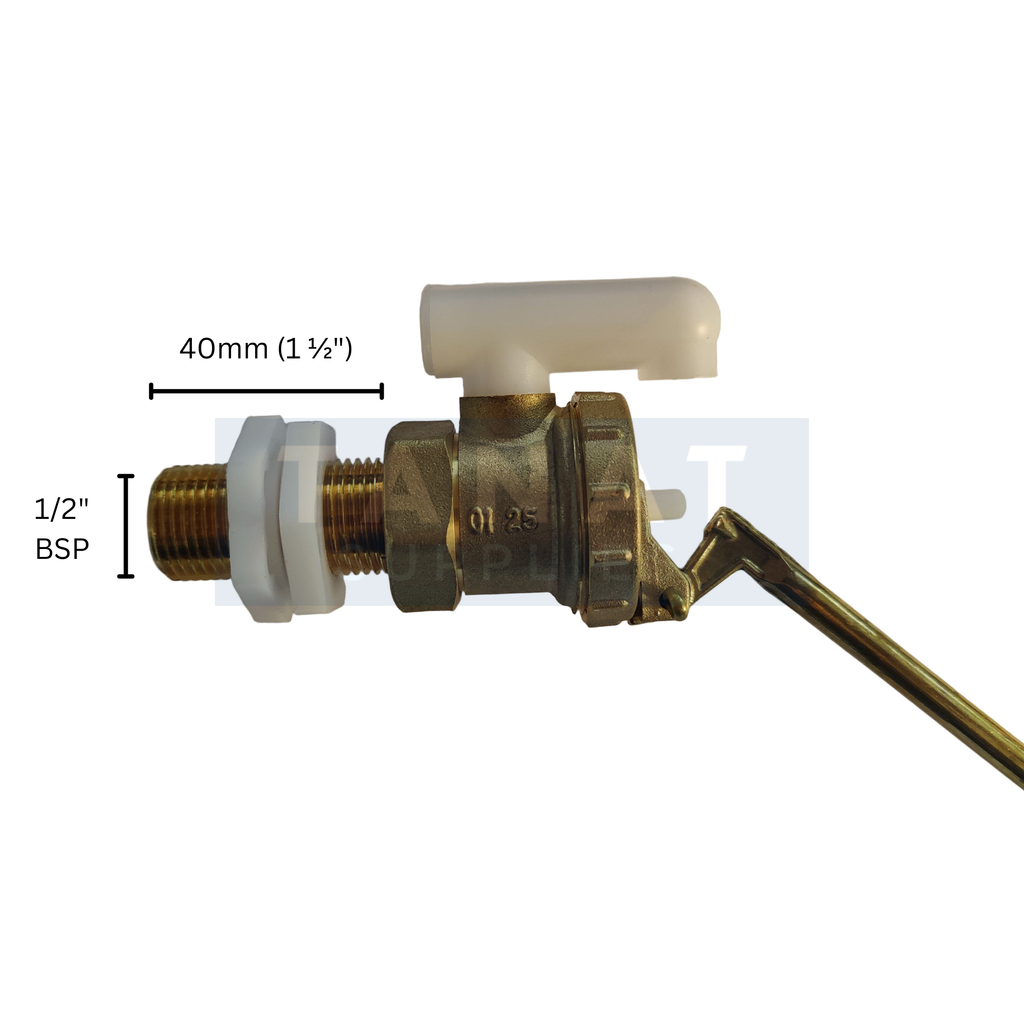

• Connection Size: 1/2" BSP (British Standard Pipe)
• Entry Type: Side-entry
• Material: Brass shank with plastic nut
• Type: Part 2 float valve (with backflow prevention)
• Working Pressure: 0.1 to 10 bar
• Water Temperature Range: 5°C to 35°C
• Suitable for: Drinking water / potable water systems

What is Part 2 Specification?

Part 2 float valves include built-in backflow prevention devices that protect the mains water supply from contamination. This is a requirement under UK water regulations for certain installations. The backflow preventer ensures water cannot flow back from the tank into the mains supply.
