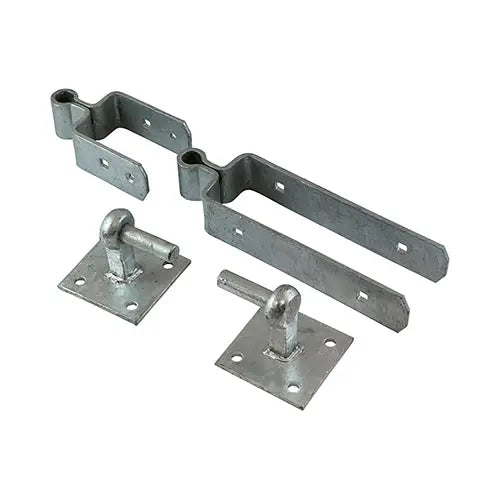

Double Strap Hinge Set with Hook on Plate - Hot Dipped Galvanised - 600mm
Double Strap Hinge Set with Hook on Plate - Hot Dipped Galvanised - 600mm
SKU:AS003-DSFH600G
No reviews
Regular price
£39.54
Regular price
Sale price
£39.54
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
| Bottom Strap L (inch) | 6 |
| Bottom Strap L (mm) | 150 |
| Brand | TIMCO |
| Carriage Bolt Size (mm) | M10 x 95 |
| Carton Qty (packs) | 4 |
| Coach Screw Size (mm) | M10 x 65 |
| Corrosion Rating (1-5) | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Finish | Hot Dipped Galvanised |
| Hook Plate Size L x W (mm) | 100 x 100 |
| Material | Carbon Steel |
| MOQ | 1 |
| MOQ Increment | 1 |
| No. of Carriage Bolts | 4 |
| No. of Coach Screws | 8 |
| No. of Nuts | 4 |
| No. of Washers | 4 |
| Nut Size (mm) | M10 |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 762 |
| Pack Qty | 1 |
| Pack Type | Plain Bag |
| Pack Weight (kg) | 6.42 |
| Pin Ø (inch) | 3⁄4 |
| Pin Ø (mm) | 19 |
| Strap T (mm) | 6 |
| To Suit Gate T (inch) | 3 |
| To Suit Gate T (mm) | 75 |
| To Suit Gate W (ft) | 9 - 12 |
| To Suit Gate W (mm) | 2700 - 3600 |
| Top Strap L (inch) | 24 |
| Top Strap L (mm) | 600 |
| Washer Size (mm) | M10 |
| Washer Type | Form A |
