Gwaza Jockey Wheel HD Ifor Williams Style No Clamp 48mm 500kg

Name: Gwaza Jockey Wheel HD Ifor Williams Style No Clamp 48mm 500kg
Brand: Gwaza
SKU: AS001-5204
Price: 56.49 GBP
Availability: InStock

AS001-5204

£56.49 GBP

VAT Included

Delivery Available

Collection In Store Not available

If you'd like to collect from store, please contact us

Product Description

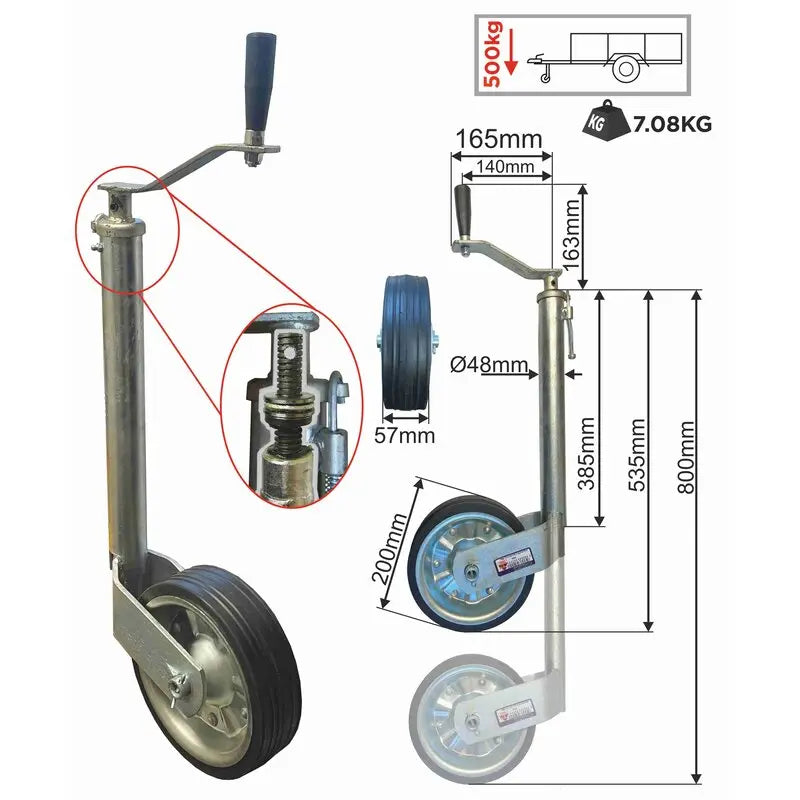

The Gwaza Jockey Wheel HD IW Style no Clamp 48mm N.W.L 500kg is a jockey wheel designed for use with Ifor Williams trailers. Its primary function is to provide a stable and adjustable support for trailers. The jockey wheel features a wheel size of 50mm x 200mm diameter and a spindle size of 62mm x 20mm diameter. It has a maximum load capacity of 500kg. The jockey wheel's closed height is 690mm overall, with a height to the base of the handle ranging from 600 to 800mm. When open, the overall height is 990mm.

Specifications

Specification	Value
N.W.L	500kg
Wheel Size	50mm x 200mm dia
Spindle Size	62mm x 20 mm dia
Suitable for	Ifor Williams trailers
Closed height O/A	690mm
Closed / open height to base of handle	600 - 800mm
Height O/A Closed	710mm
Height O/A Open	990mm
Spare Wheel	5211
