LED Rear Trailer Lamp 4-Function DC 10-30V
£38.57 GBP
Sale price
£38.57 GBP
Regular price
Skip to product information
Collections:
LED Rear Trailer Lamp 4-Function DC 10-30V
AS001-15141
£38.57 GBP
Sale price
£38.57 GBP
Regular price
VAT Included

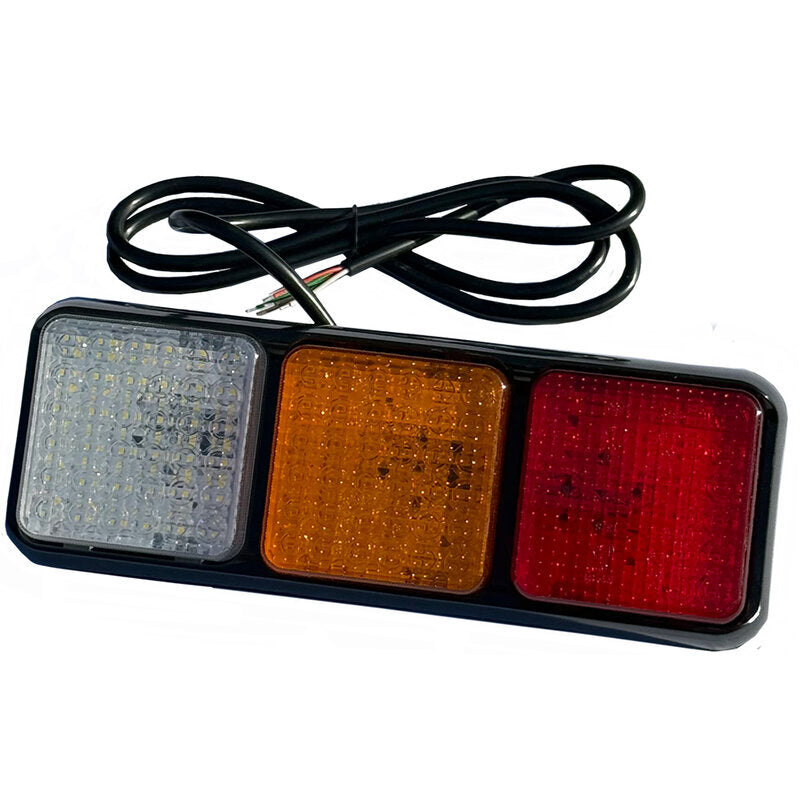

The LED rear trailer lamp delivers four functions—stop, tail, indicator, and reverse—using a 10‑30 V DC power source.
It contains 36 red, 36 amber, and 36 white LEDs, measures 270 mm × 95 mm × 28 mm, and is supplied with a 1.5 m, 5‑core cable.
The lamp is IP67 rated and E approved, ensuring protection against dust and water ingress. It operates within the 10‑30 V DC range, making it compatible with standard trailer wiring systems.
The 5‑core cable supports the lamp’s power and signal connections, and its 1.5 m length accommodates typical trailer harness arrangements. The compact 270 mm × 95 mm × 28 mm footprint allows easy mounting on most trailer rear brackets. Suitable for agricultural trailers.
Specifications
| Specification | Value |
|---|---|
| Function | Stop / Tail / Indicator / Reverse |
| LED Count | 36 Red, 36 Amber, 36 White |
| Dimensions | 270 mm × 95 mm × 28 mm |
| Cable | 5‑core, 1.5 m long |
| Operating Voltage | 10‑30 V DC |
| IP Rating | IP67 |
| Approval | E approved |
Frequently Asked Questions
What is the operating voltage range?
The lamp operates on a 10‑30 V DC power supply.
What is the IP rating of the lamp?
The lamp is rated IP67, providing protection against dust and water ingress.
How many LEDs are used for each color?
The lamp contains 36 red, 36 amber, and 36 white LEDs.
