12V LED Trailer Lamp 7 Functions - Right Hand

Name: 12V LED Trailer Lamp 7 Functions - Right Hand
Brand: Gwaza
SKU: AS001-15083
Price: 59.99 GBP
Availability: InStock

AS001-15083

£59.99 GBP

VAT Included

Delivery Available

Collection In Store Not available

If you'd like to collect from store, please contact us

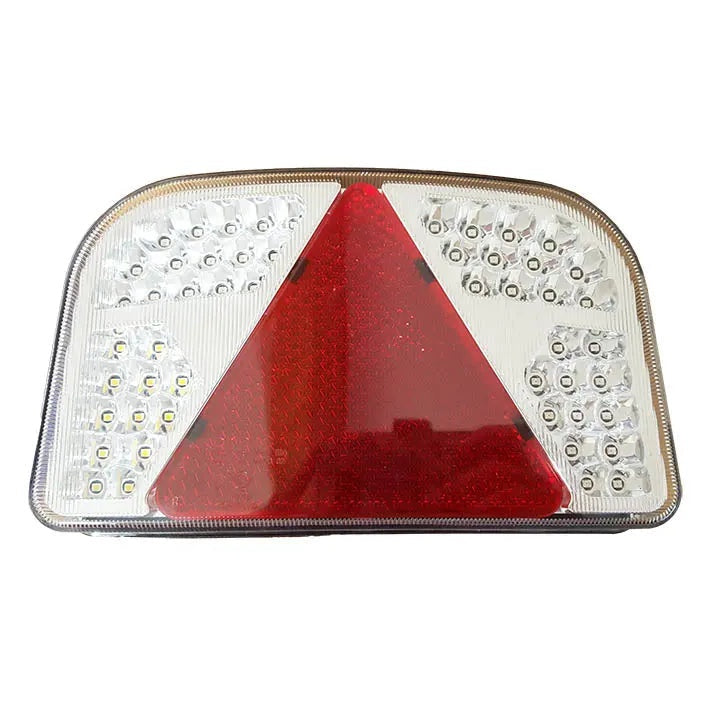

The Lamp LED Trailer is a 12‑volt lighting module designed for rear‑mounted applications. It measures 244 mm wide, 148 mm deep, and 48 mm high, providing a compact footprint for trailers and light vehicles.

The unit offers seven integrated functions: rear light, stop light, reversing light, fog light, indicator light, license‑plate light, and a reference E4 mark. A 1.4‑meter cable supplies the lamp, with color‑coded conductors—white earth, brown side, red stop, yellow indicator, blue fog, grey reversing.

Installation requires mounting bolts spaced 150 mm apart, matching standard trailer mounting patterns. The lamp is rated for 12‑volt DC operation and complies with reference E4 marking, indicating conformity with European lighting regulations.

Specifications

Specification	Value
Voltage	12 V DC
Dimensions	244 mm × 148 mm × 48 mm
Functions	Rear light, stop light, reversing light, fog light, indicator light, license‑plate light, reference E4 mark
Wire Length	1.4 m
Wire Color Codes	White (earth), brown (side), red (stop), yellow (indicator), blue (fog), grey (reversing)
Bolt Spacing	150 mm centres
Marking	E4
