3-in-1 LED Rear Trailer Lamp 12V/24V IP68 Waterproof
AS001-15075
£20.57 GBP
Sale price
£20.57 GBP
Regular price
VAT Included
Product Overview
This 3‑in‑1 LED rear trailer lamp provides earth, indicator, stop, and tail lighting for 12‑V or 24‑V trailer systems. The lamp delivers 16 LEDs and is IP68 waterproof, meeting E‑Mark and RoHS standards.

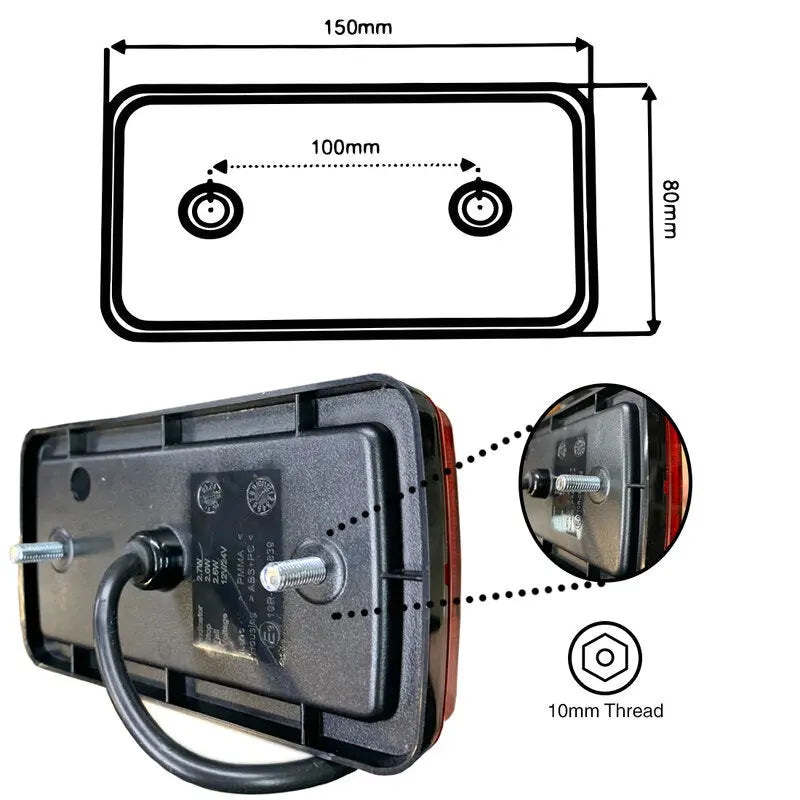

Dimensions are 150 mm long, 80 mm high and 22 mm deep. The lamp is not handed and can be mounted on either the near side or the off side of a trailer. It is sold as a single unit.

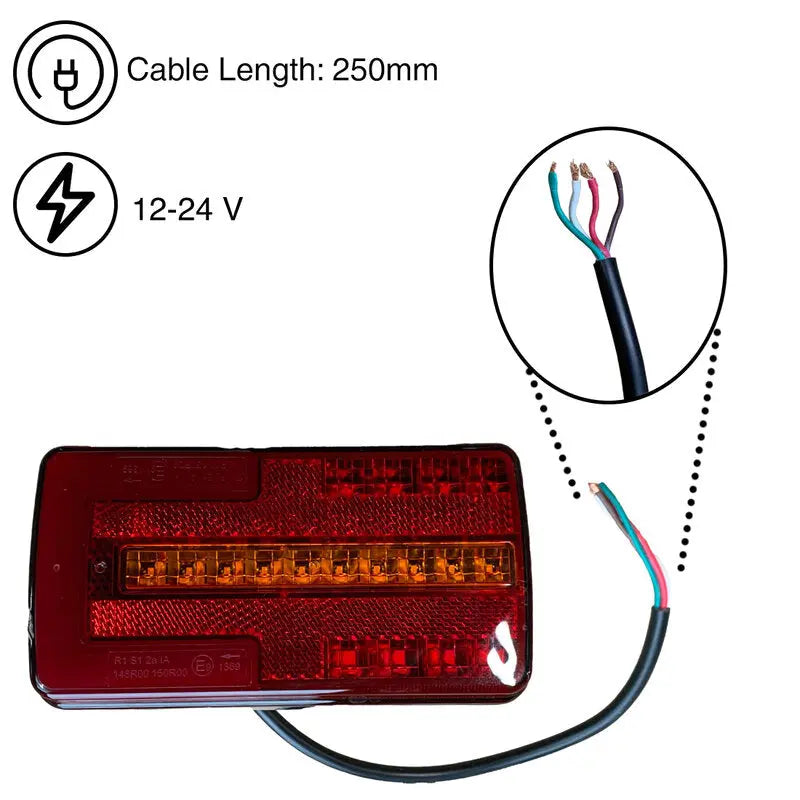

Install by connecting the lamp to the trailer’s electrical harness. Use the appropriate color codes: white for earth, green for indicator, red for stop, and brown for tail. The lamp is compatible with standard trailer wiring and 12‑V/24‑V power supplies.
Specifications
| Specification | Value |
|---|---|
| Light Source | 16 LEDs |
| Waterproof Rating | IP68 |
| Voltage | 12 V / 24 V |
| Dimensions (L × H × D) | 150 mm × 80 mm × 22 mm |
| Compliance | E‑Marked, RoHS Compliant |
| Color Codes | White = Earth, Green = Indicator, Red = Stop, Brown = Tail |
| Handedness | Not handed (mountable on either side) |
| Unit Quantity | 1 |
Frequently Asked Questions
What voltage does the lamp support?
The lamp operates on 12 V or 24 V power supplies.
What is the waterproof rating of the lamp?
The lamp is rated IP68, providing full protection against water immersion.
What are the dimensions of the lamp?
The lamp measures 150 mm in length, 80 mm in height, and 22 mm in depth.
