Rear Trailer 4-in-1 LED Lamp 10-30V 115x115x33mm

Name: Rear Trailer 4-in-1 LED Lamp 10-30V 115x115x33mm
Brand: Gwaza
SKU: AS001-15037
Price: 25.71 GBP
Availability: InStock

AS001-15037

£25.71 GBP

VAT Included

Delivery Available

Collection In Store Not available

If you'd like to collect from store, please contact us

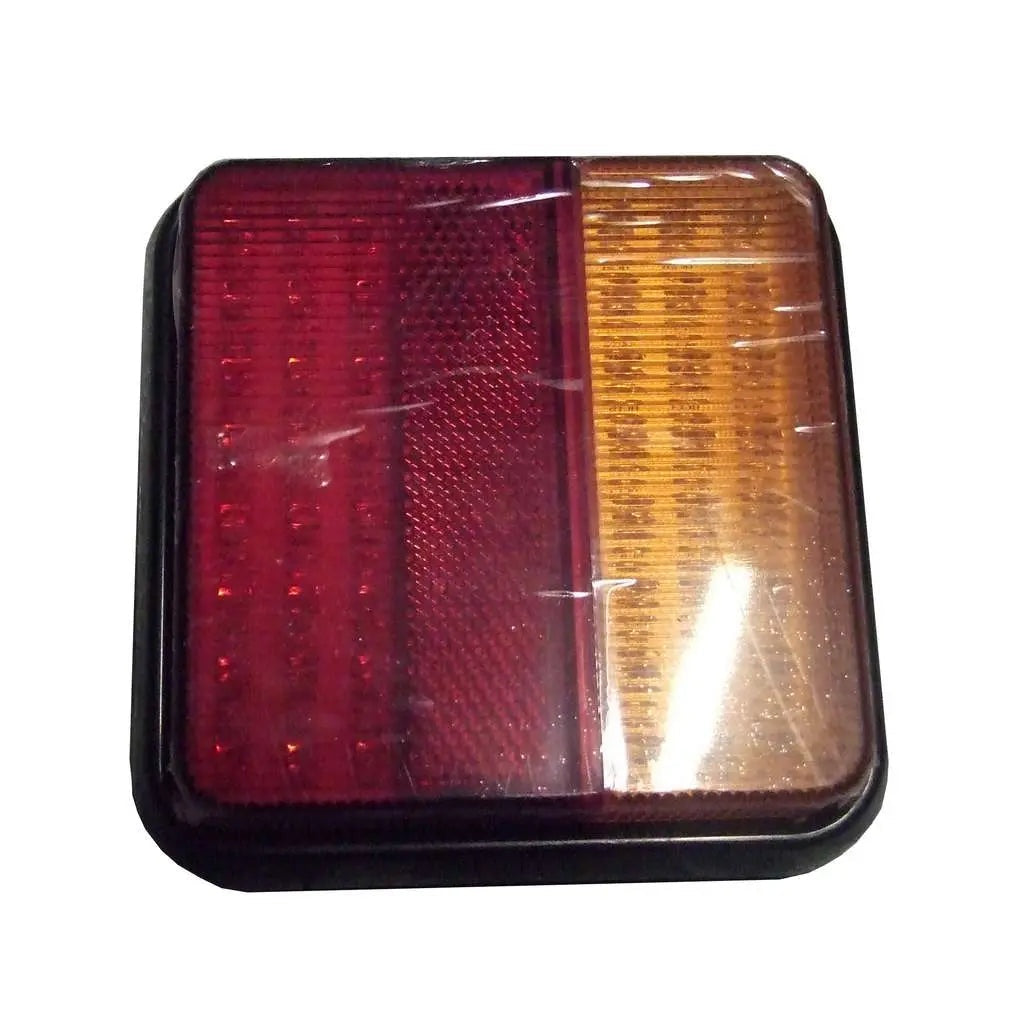

The Lamp Rear Trailer 4‑in‑1 LED is a multi‑function lighting unit designed for rear trailer applications. It contains 48 bright LEDs and operates on a 10‑30 V input. The unit is rated for a 12 V DC working voltage.

Red and amber colour lenses provide stop and tail light illumination, while the integrated reflector enhances the indicator function. The unit mounts via standard screws and features a sealed, waterproof, shock‑proof housing, and is E‑marked.

Wiring is supplied with colour‑coded leads: red for stop, green for indicator, brown for tail, and white as the negative return. This configuration supports standard rear‑trailer lighting systems and ensures compatibility.

Specifications

Specification	Value
Input voltage range	10‑30 V
Working voltage	DC 12 V
LED count	48
Lens colour	Red and amber
Functions	Stop, tail, indicator with reflector
Mounting	Screw
Body	Sealed, waterproof, shock‑proof
Certification	E‑marked
Wiring	Red (stop), Green (indicator), Brown (tail), White (negative)
Dimensions	115 mm × 115 mm × 33 mm
