Lamp Tail Right Hand 12/24V L146 x H218mm

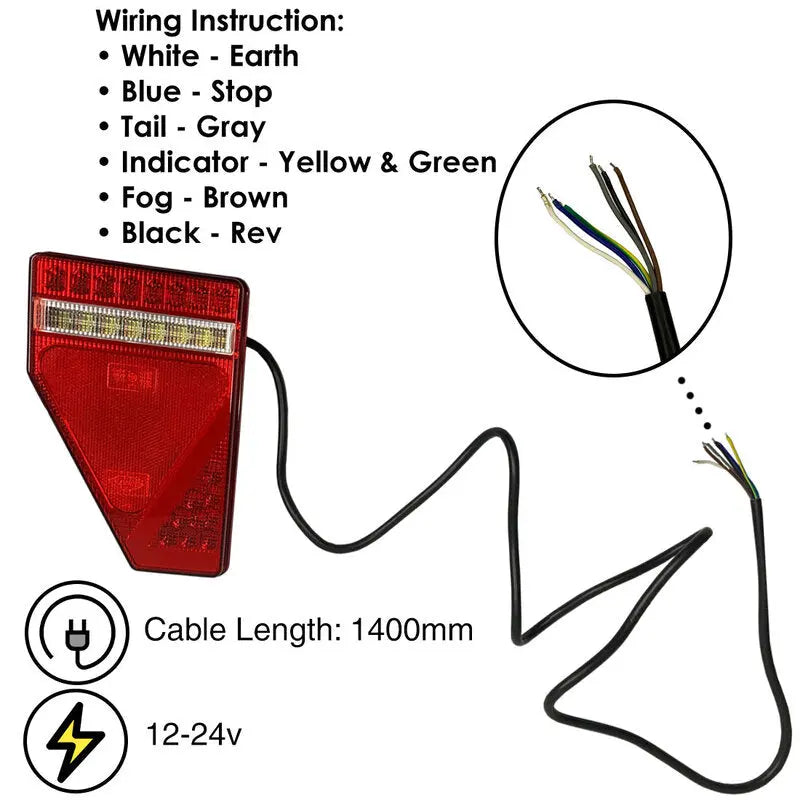

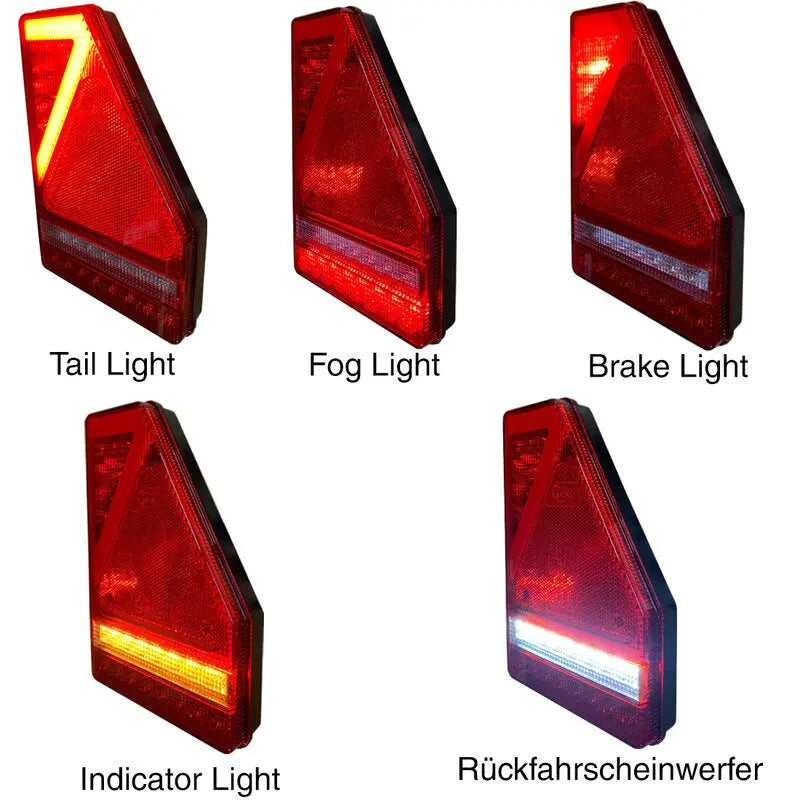

The Lamp Tail RH 12/24V L146 x H218mm is a right‑hand mounting tail light designed for agricultural machinery. It operates on 12 V or 24 V DC and offers a red or clear lens for visibility. The lamp provides tail, stop, DI, fog, reverse, and reflex illumination.

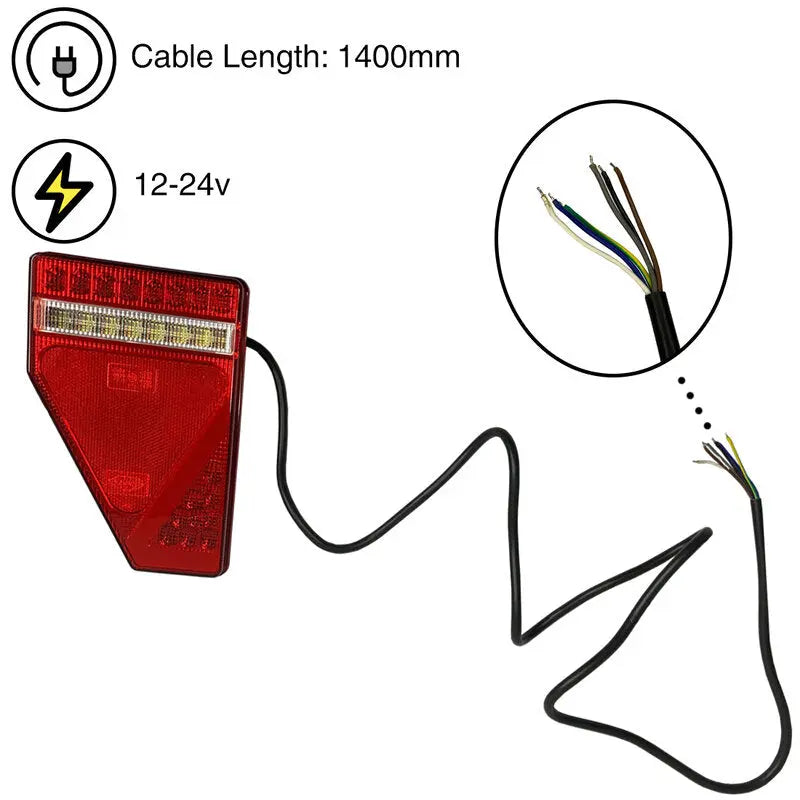

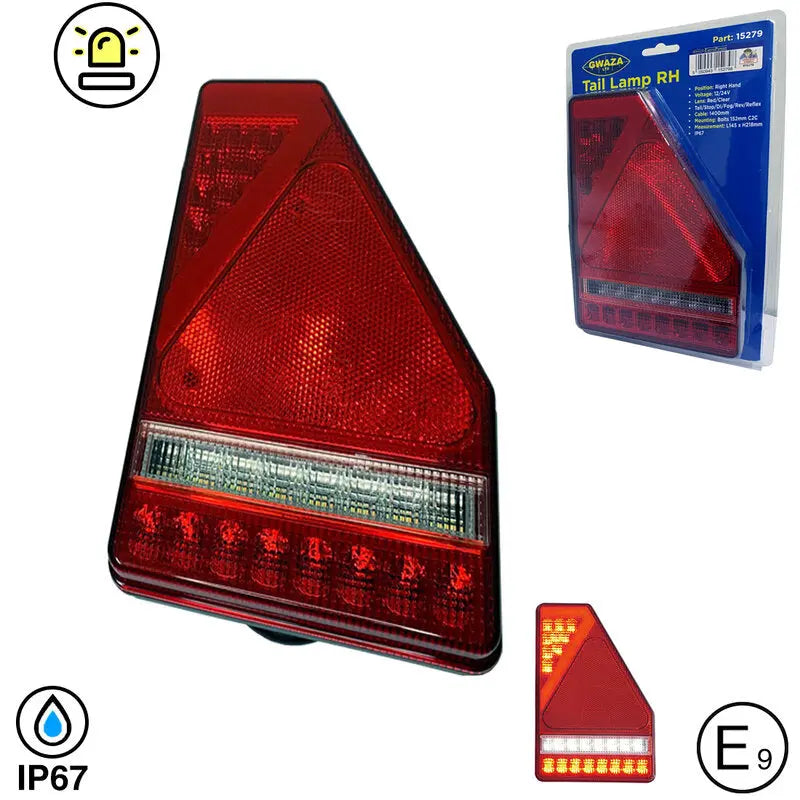

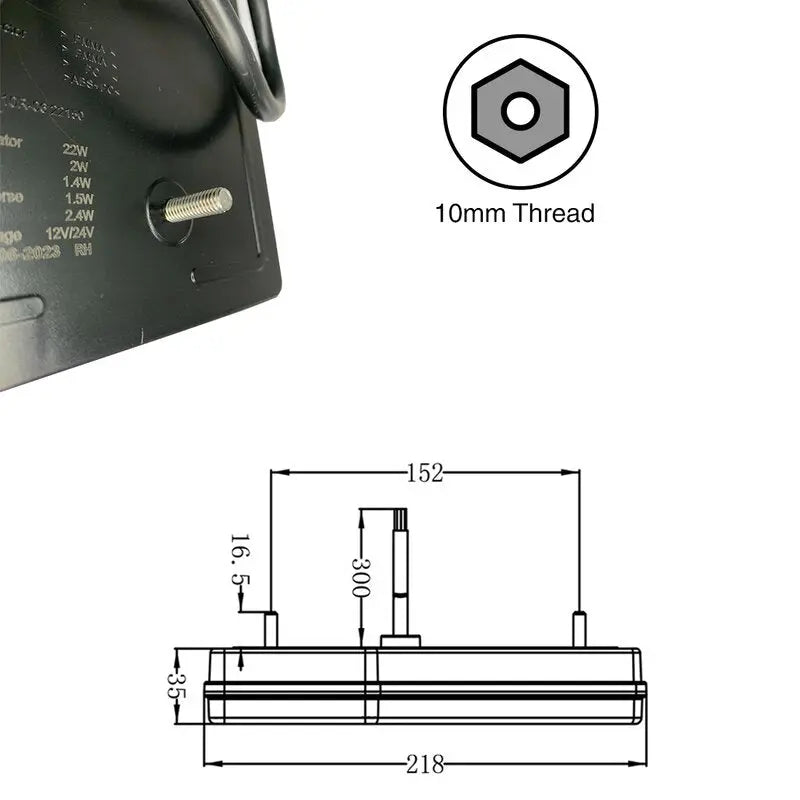

The lamp is supplied with a 1400 mm power cable and mounts using 152 mm center‑to‑center bolts. The unit measures 146 mm in length and 218 mm in height. It meets IP67 ingress protection, ensuring resistance to dust and temporary immersion.

The lamp tail is compatible with standard 3‑point linkage and other right‑hand mounting systems. It delivers combined tail and stop lighting, directional illumination for reverse and fog conditions, and a reflex beam for increased visibility. The dual‑voltage design allows use on both 12 V and 24 V tractor power supplies.

Specifications

Frequently Asked Questions

What bolt spacing is required for mounting?

The lamp mounts with 152 mm center‑to‑center bolts.

What voltage options does the lamp support?

The lamp operates on 12 V or 24 V DC.

What IP rating does the lamp have?

The lamp has an IP67 rating, protecting it from dust and temporary immersion.
