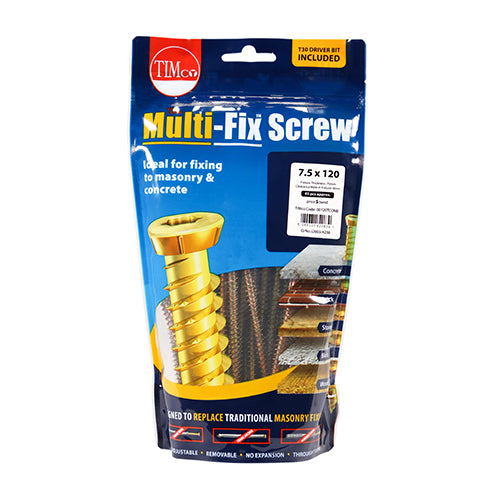

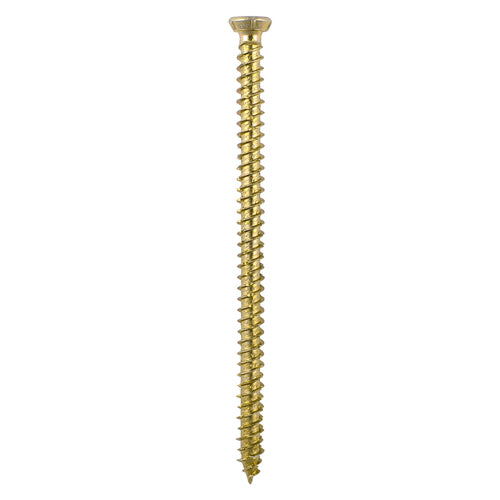

Multi-Fix Concrete Screw - ZYP - 7.5 x 120 | TIMbag of 45
AS003-00120TCONB
£9.81 GBP
VAT Included
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
Key Features
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming-out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Zinc plated and yellow passivated for increased corrosion resistance
- High-Low thread on first 30mm to aid insertion and reduce torque
- Ideal for fitting windows and door frames
- Flat countersunk head with five locking ribs
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Specifications
| Size | 7.5 x 120 |
|---|---|
| Thread Dia. mm | 7.5 |
| Length mm | 120 |
| Recess Type | TX Drive |
| Head Type | Flat Countersunk with Ribs |
| Finish | Zinc & Yellow |
| Drill Hole Dia. mm | 6 |
| Fixture Hole Diameter mm | 8 |
| Min Embedment Depth mm | 50 |
| Pack Quantity | 45 Pieces |
