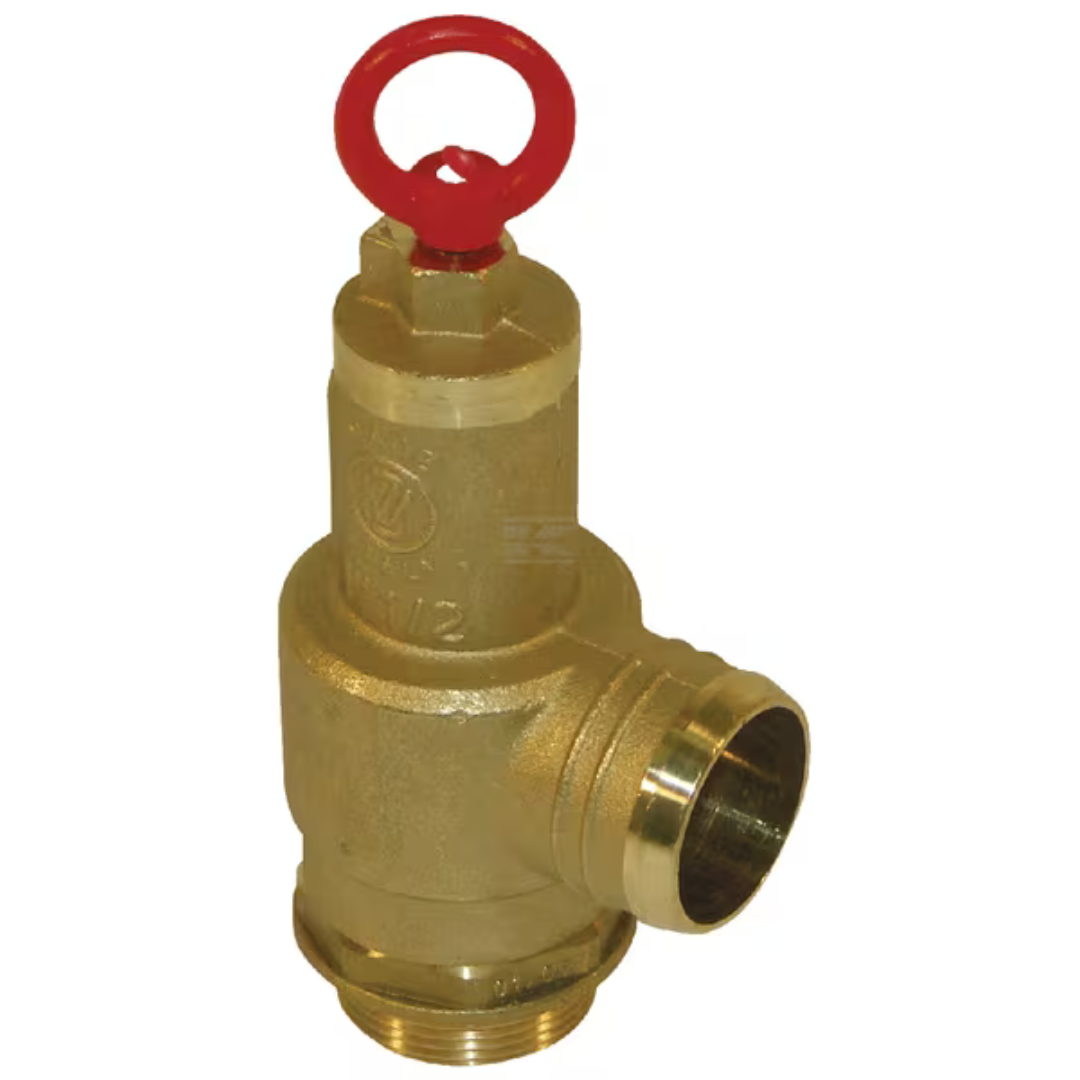

Brass valve with a red handle on a white background

1/3

MS Slurry Safety Valve 1 1/2"

Name: MS Slurry Safety Valve 1 1/2"
Brand: MZ
SKU: AS000-AGR010
Price: 50.11 GBP
Availability: InStock

AS000-AGR010

£50.11 GBP

VAT Included

Delivery Available

Collection In Store Not available

If you'd like to collect from store, please contact us

The MZ Valve provides easy setting and fast plumbing, ensuring a higher volume flow compared to other valves. With a low stiffness stainless-steel spring, it opens twice as much at the same pressure, delivering superior performance. The long-shaped body contains the spring perfectly, while the well-spaced hose connector guarantees a comfortable connection with the discharge tube. The upper ring is easily set with an Allen key and securely locked with an anti-rotation screw.

Easy Setting: Adjustable via the upper ring; secure with anti-rotation screw (requires a classic Allen key)
Fast Plumbing: Quick setup using the pressed sinker behind the anti-rotation screw
High Flow Rate: Low stiffness spring allows the MZ valve to open twice as much as other valves at the same pressure, increasing volume flow
Durable Design: Long-shaped body housing a stainless-steel low stiffness spring
Comfortable Connection: Well-spaced hose connector for easy discharge tube attachment

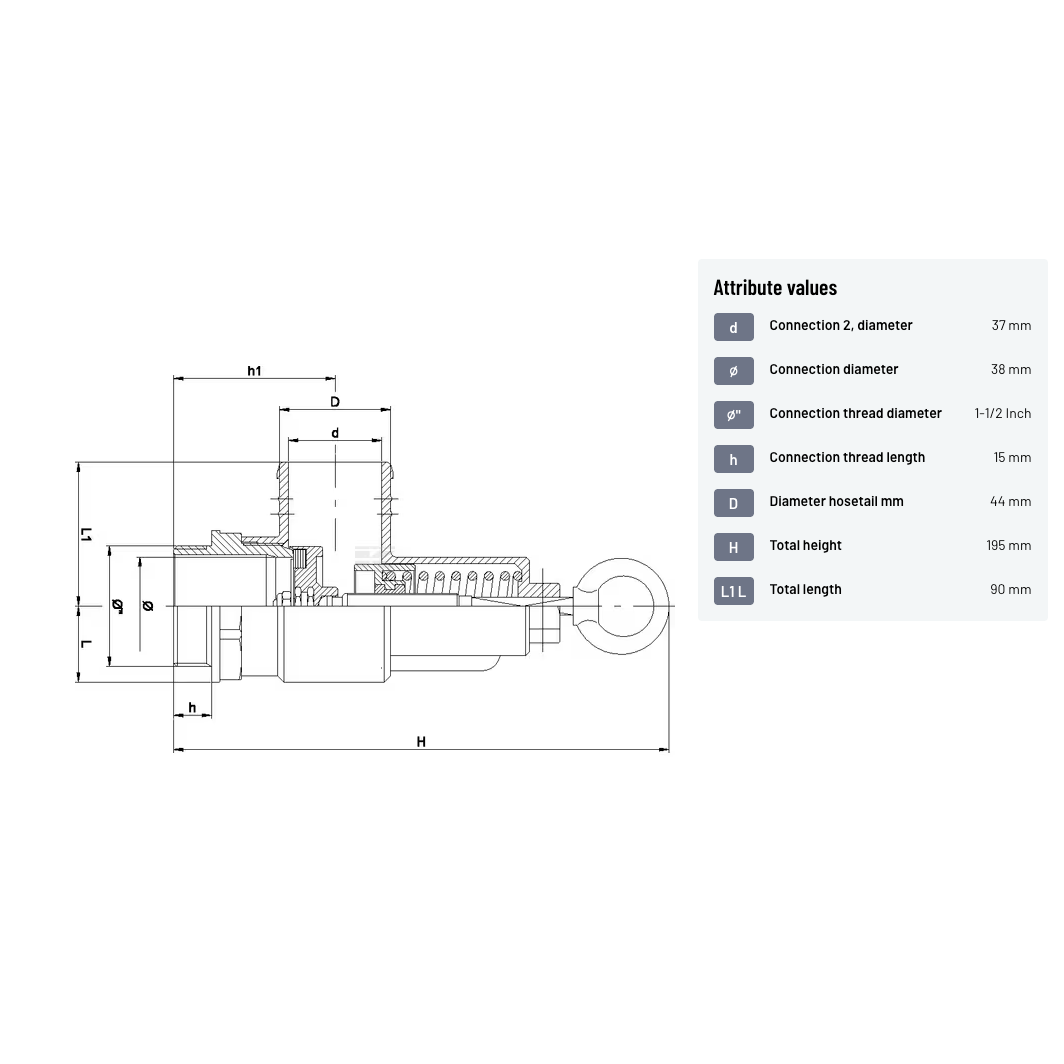

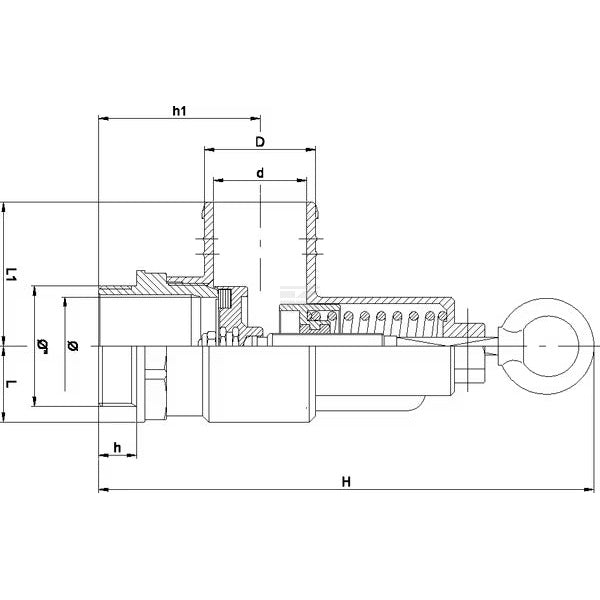

dConnection 2, diameter	37 mm
⌀Connection diameter	38 mm
⌀"Connection thread diameter	1-1/2 Inch
hConnection thread length	15 mm
Connection thread type	BSP
DDiameter hosetail mm	44 mm
Height h1	49.5 mm
Length L1	60 mm
L	30 mm
Max working pressure	1.5 BAR
Max working temperature	60 °C
Min. working pressure	0.3 BAR
Min working temperature	-15 °C
HTotal height	195 mm
L1 LTotal length	90 mm
Weight	1.02 kg
