Standard Double Strap Hinge Set - Hot Dipped Galvanised - 450mm
Standard Double Strap Hinge Set - Hot Dipped Galvanised - 450mm
SKU:AS003-SFH450G
Couldn't load pickup availability
Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
| Bottom Strap L (inch) | 6 |
| Bottom Strap L (mm) | 150 |
| Brand | TIMCO |
| Carriage Bolt Size (mm) | M10 x 95 |
| Carton Qty (packs) | 4 |

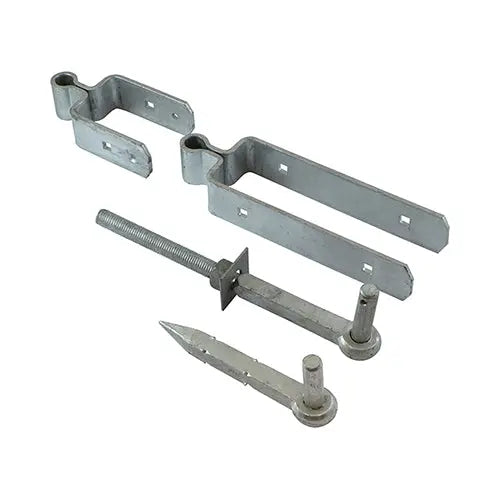

| Contents | 450mm Top Strap (Qty 1) 150mm Bottom Strap (Qty 1) 215mm Hook to Drive (Qty 1) M20 x 350mm Hook to Bolt (Qty 1) M10 x 95mm Carriage Bolts (Qty 4) M10 Full Hex Nuts (Qty 4) M10 Washers (Qty 4) 6.0 x 40mm TIMco Exterior Woodscrews (Qty 2) |
| Corrosion Rating (1-5) | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size (mm) | 6.0 x 40 |
| Feature 1 | Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off |
| Feature 2 | Hooks to drive are barbed, preventing the gate from working loose |
| Finish | Hot Dipped Galvanised |
| Hook to Bolt Ø x L (mm) | M20 x 350 |
| Hook to Drive Size (mm) | 215 x 22 |
| Material | Carbon Steel |
| MOQ | 1 |
| MOQ Increment | 1 |
| No. of Carriage Bolts | 4 |
| No. Of CSK Screws | 2 |
| No. of Nuts | 4 |
| No. of Washers | 4 |
| Number of Screw Holes | 2 |
| Nut Size (mm) | M10 |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H (mm) | 152 x 30 x 610 |
| Pack Qty | 1 |
| Pack Type | Plain Bag |
| Pack Weight (kg) | 5.28 |
| Pin Ø (inch) | 3⁄4 |
| Pin Ø (mm) | 19 |
| Strap T (mm) | 6 |
| To Fit Carriage Bolt Ø (mm) | M10 |
| To Suit Gate T (inch) | 3 |
| To Suit Gate T (mm) | 75 |
| To Suit Gate W (ft) | 4 - 9 |
| To Suit Gate W (mm) | 1200 - 2700 |
| Top Strap L (inch) | 18 |
| Top Strap L (mm) | 450 |
| Washer Size (mm) | M10 |
| Washer Type | Form A |
