Tow Hitch Dual Purpose 1500 kg Capacity
AS001-3600
£29.91 GBP
Sale price
£29.91 GBP
Regular price
VAT Included
Product Description

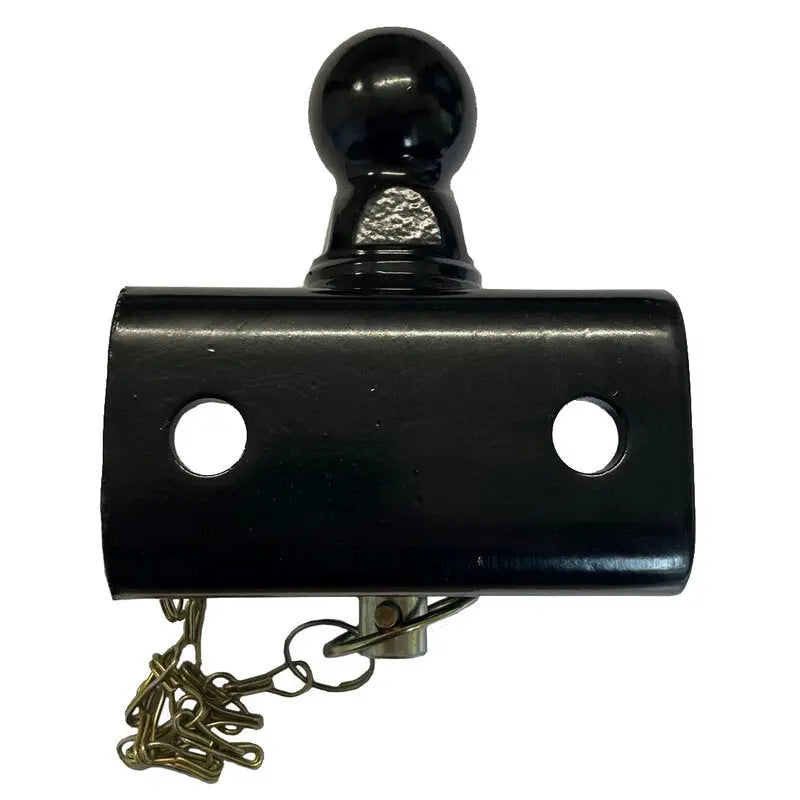

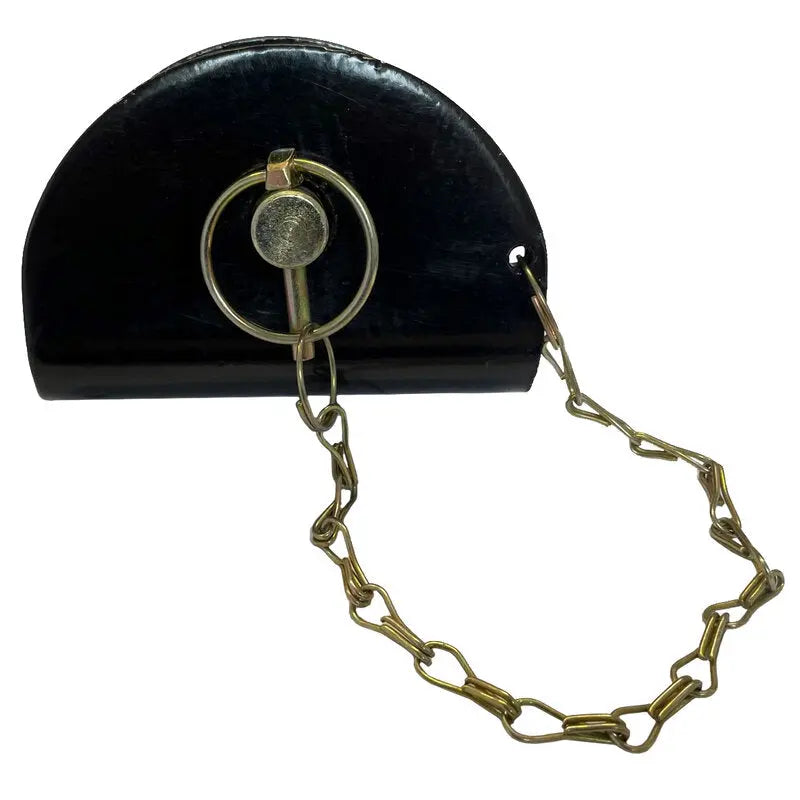

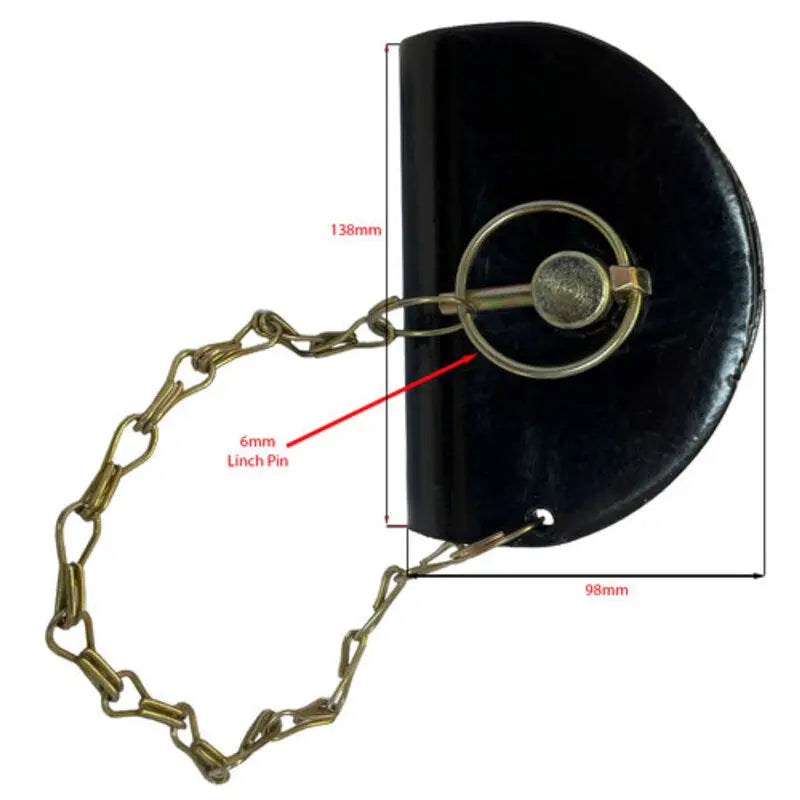

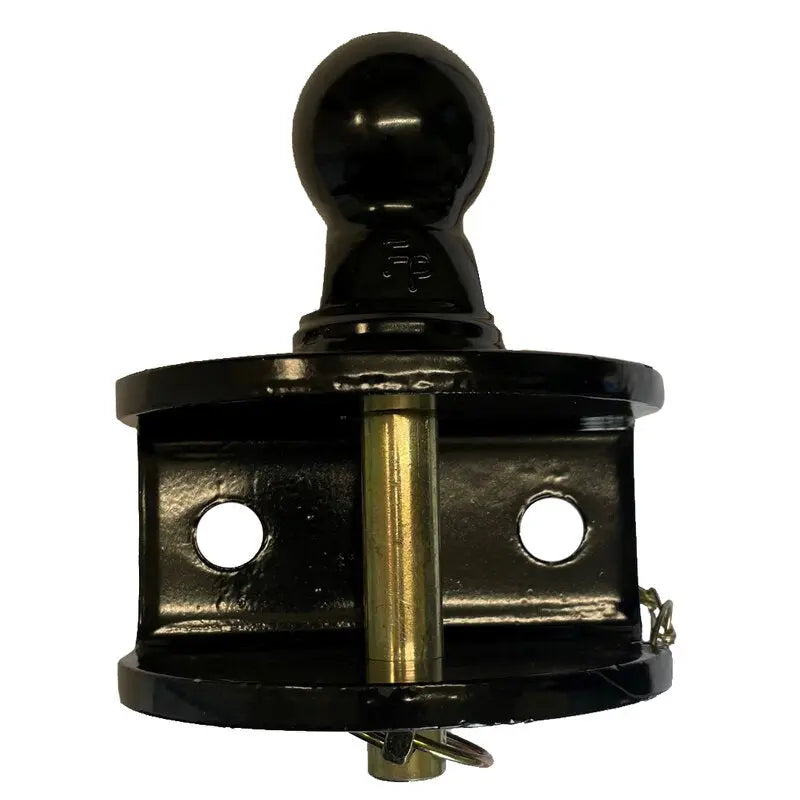

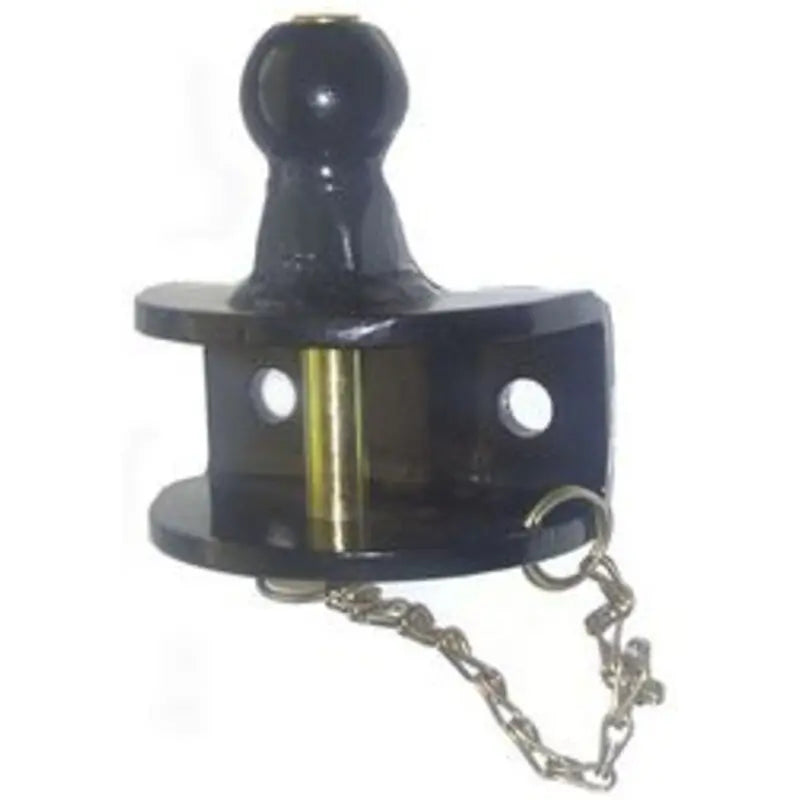

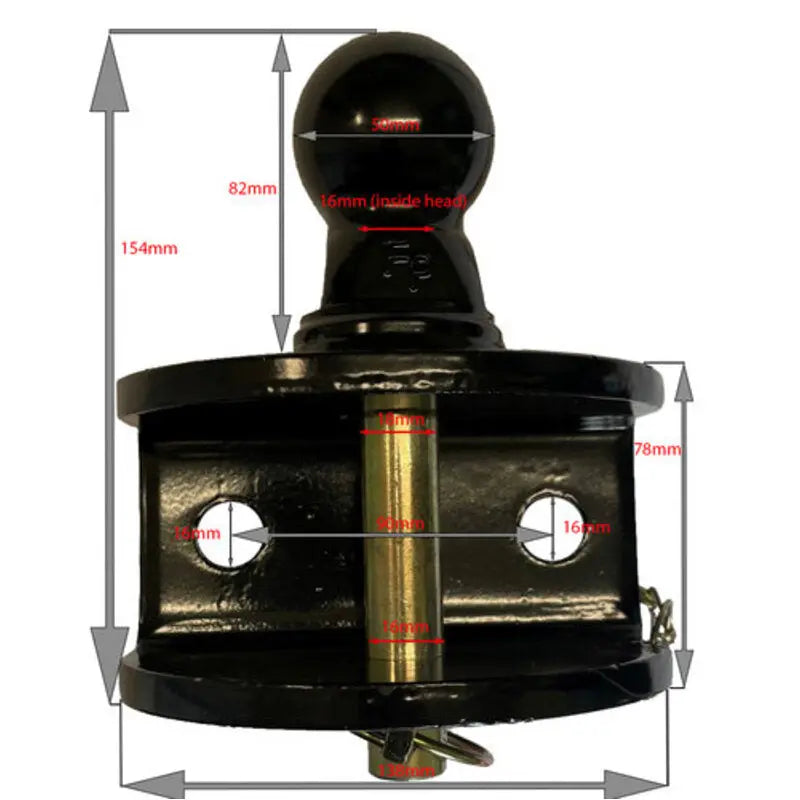

It features a 50mm ball and a pin that is 16mm thick and 154mm long. The hitch can support a maximum load of 1500 kg. It requires two M16 (10.9TS) bolts for installation. The bolt holes are 16.4mm in diameter and spaced 90mm apart.
Specifications
| Specification | Value |
|---|---|
| Capacity | 1500 kg |
| Ball diameter | 50mm |
| Pin thickness | 16mm |
| Pin length | 154mm |
| Bolt hole diameter | 16.4mm |
| Bolt hole centre spacing | 90mm |
| Required bolt size | M16 (10.9TS) |

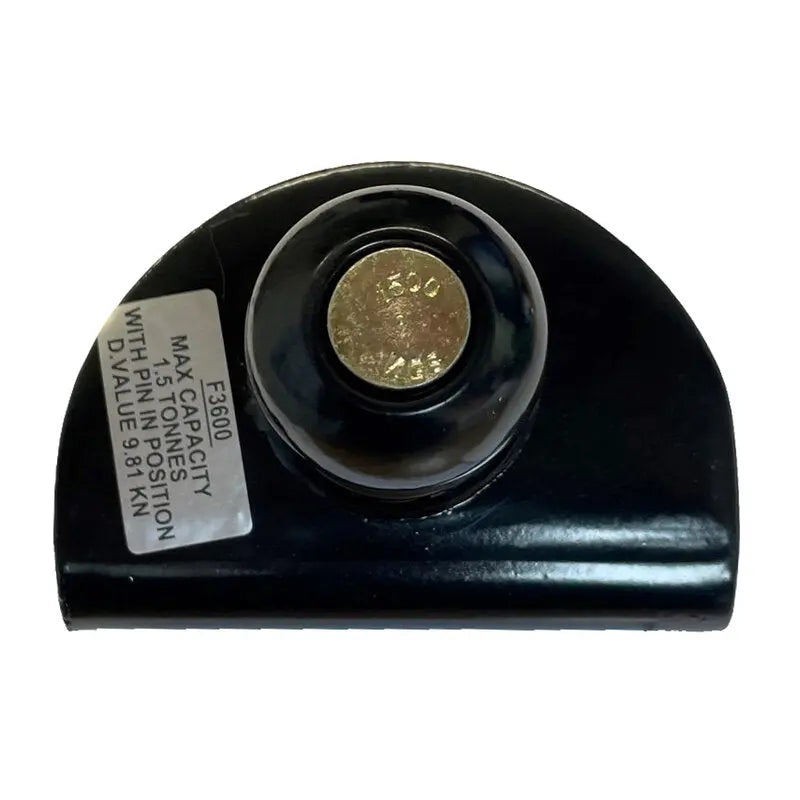

| D value (pin through ball) | 9.81 |
Frequently Asked Questions
What is the maximum load capacity of the tow hitch?
1500 kg.
What bolt size is required to install the hitch?
M16 (10.9TS) bolts.
What are the dimensions of the pin used in the hitch?
16mm thick and 154mm long.
