Tow Hitch Flange Ball and bracket 3500 kg
£21.99 GBP
Sale price
£21.99 GBP
Regular price
Skip to product information
Collections:
Tow Hitch Flange Ball and bracket 3500 kg
AS001-3584
£21.99 GBP
Sale price
£21.99 GBP
Regular price
VAT Included

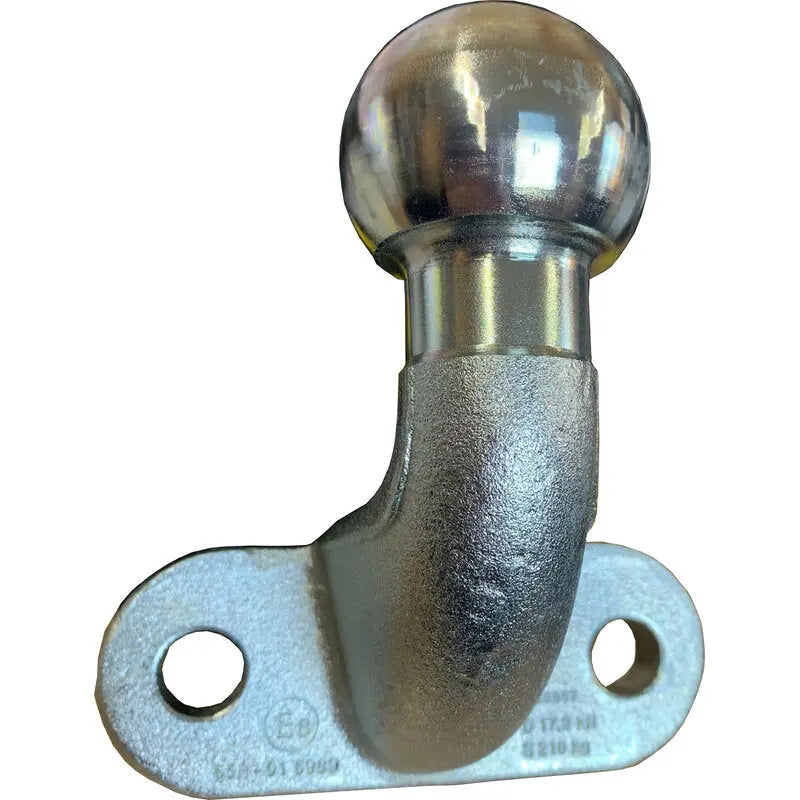

This tow hitch flange ball and bracket is rated for 3500 kg. It is E Marked.
It has two 16 mm bolt holes. The centre to centre distance is 90 mm. The distance between holes is 73 mm. The overall width is 127 mm. The D value is 17.2 Kn. The unit weighs 1.97 kg.
Specifications
| Specification | Value |
|---|---|
| Capacity | 3500 kg |
| D Value | 17.2 Kn |
| Bolt Hole Size | 16 mm |
| Bolt Hole Count | 2 |
| C2C | 90 mm |
| Distance Between Holes | 73 mm |
| Width Overall | 127 mm |
| Weight | 1.97 Kg |
| Marking | E Marked |
Frequently Asked Questions
What is the maximum load capacity?
3500 kg.
What is the D value of the hitch?
17.2 Kn.
How many bolt holes does the bracket have?
2.
What is the size of the bolt holes?
16 mm.
