Tow Hitch NATO Style 5000kg Capacity
£57.86 GBP
Sale price
£57.86 GBP
Regular price
Skip to product information
Collections:
Tow Hitch NATO Style 5000kg Capacity
AS001-3586
£57.86 GBP
Sale price
£57.86 GBP
Regular price
VAT Included

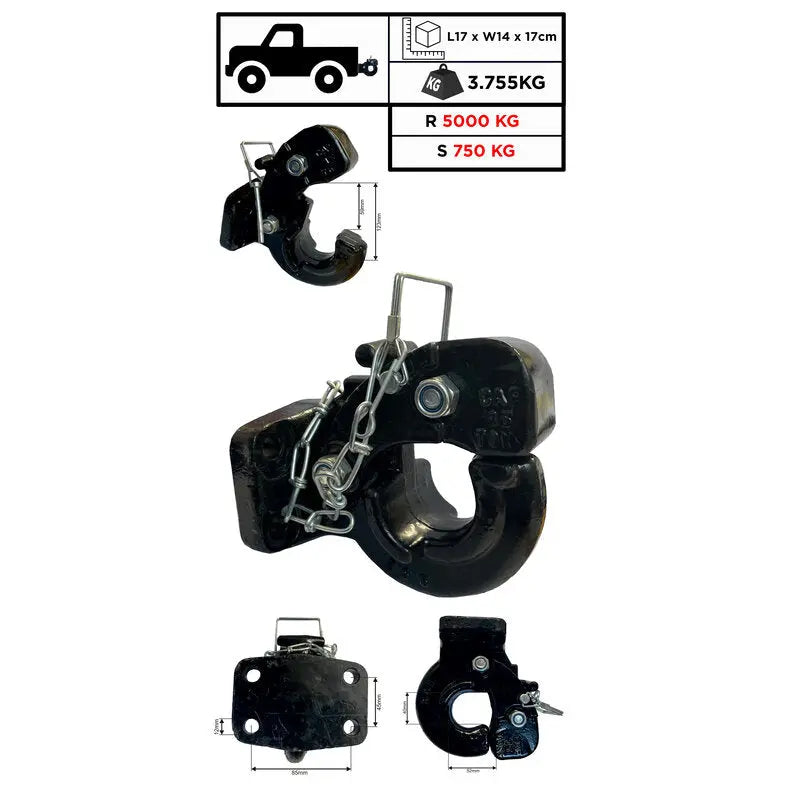

Gwaza offers a NATO style tow hitch with a 5000kg capacity. It mounts using four 12mm bolts. The bolt holes are spaced 45mm by 85mm from centre to centre.

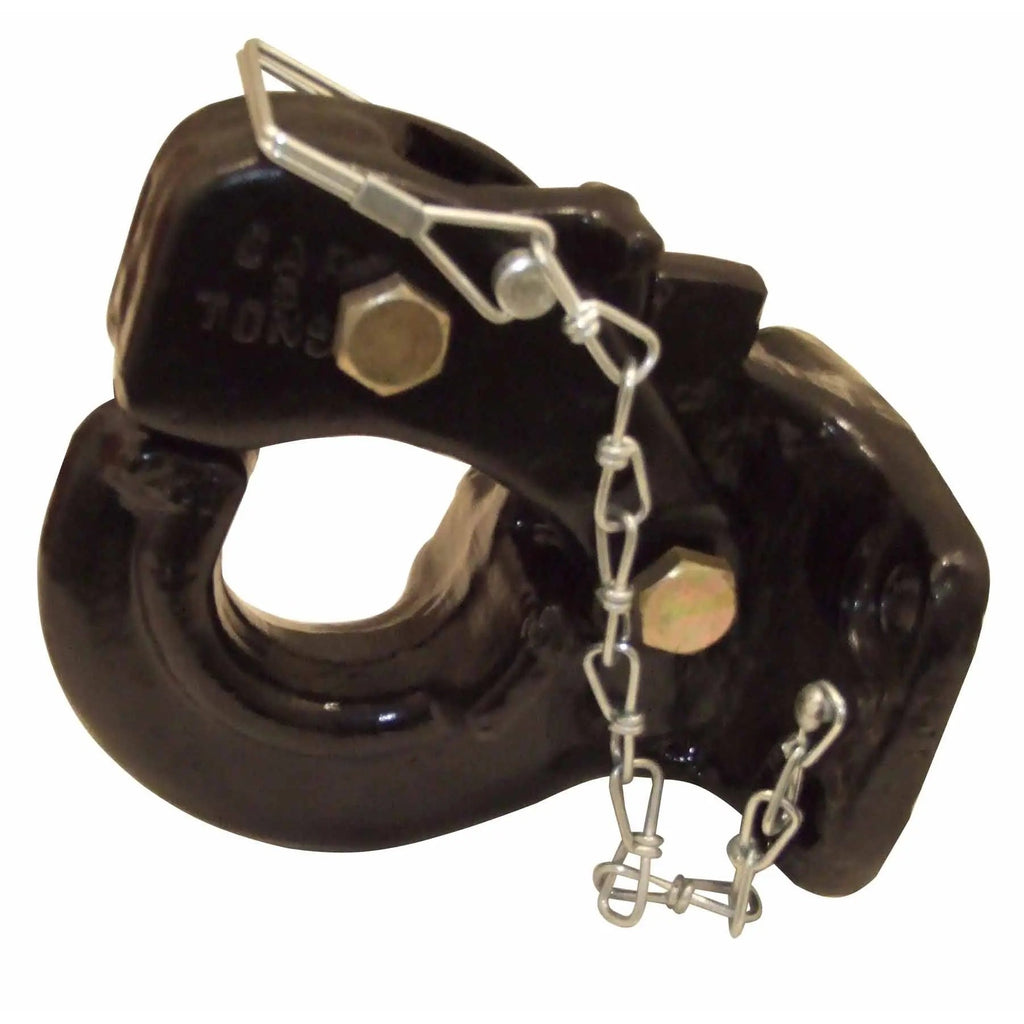

The hitch features a pintle hook and a removable lock pin and chain. The hook gap is 41mm and the jaw gape when open is 66mm. It has a black finish.
Specifications
| Specification | Value |
|---|---|
| Capacity | 5000kg |
| Mounting bolt size | 12mm |
| Number of mounting bolts | 4 |
| Bolt hole spacing (HxW) | 45mm x 85mm centres |
| Hook gap | 41mm |
| Jaw gape (open) | 66mm |
| Hook type | Pintle |
| Lock pin and chain included | Yes |
| Finish | Black |
| Compatibility | 3584 and ring hitches |
| Vertical load | 750kg |
| Style | NATO |
Frequently Asked Questions
What bolt size is required for mounting this tow hitch?
12mm bolts are required.
What is the hook gap of this tow hitch?
The hook gap is 41mm.
What is the vertical load capacity of this tow hitch?
The vertical load capacity is 750kg.
