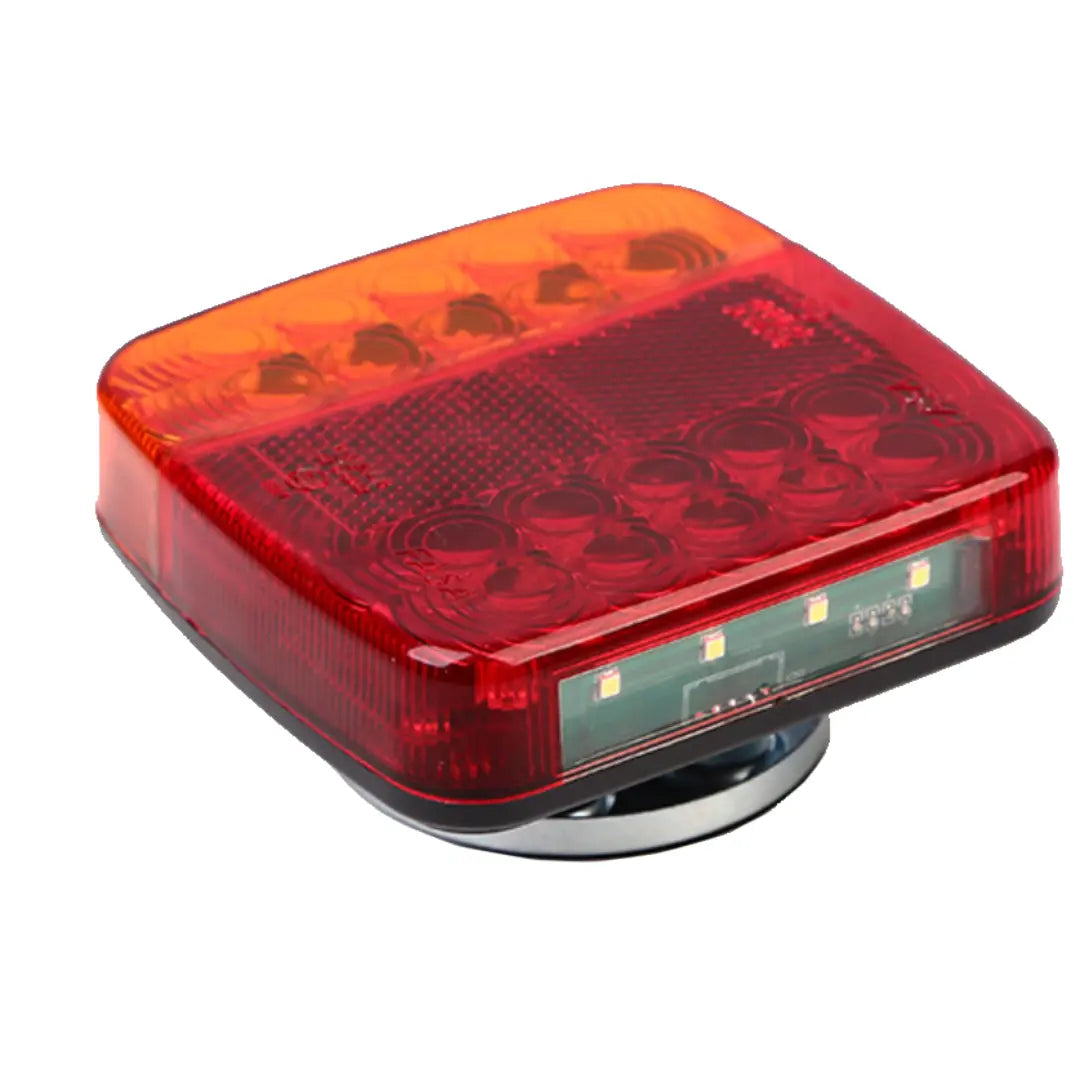

Gwaza Magnetic Wireless LED Lamp Set 12V/24V with 7 Pin Connector

Product Overview

The LED lamp set provides tail, stop, ID, and number‑plate illumination for trailers and vehicles. It operates on 12 V or 24 V DC and can be powered via a DC 5 V USB charger. The system uses a 2.4 GHz wireless link with a 30‑meter range, enabling remote control without cabling.

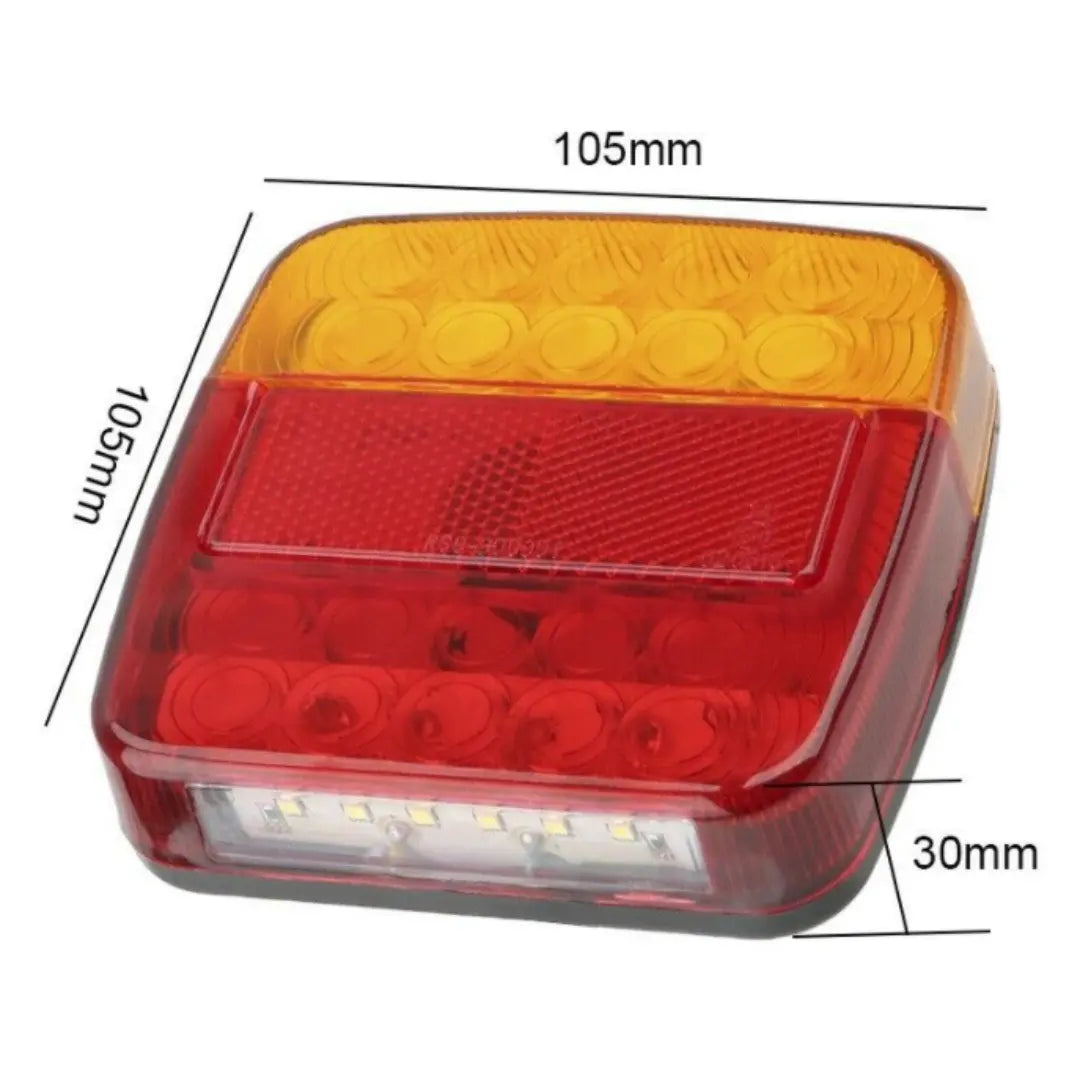

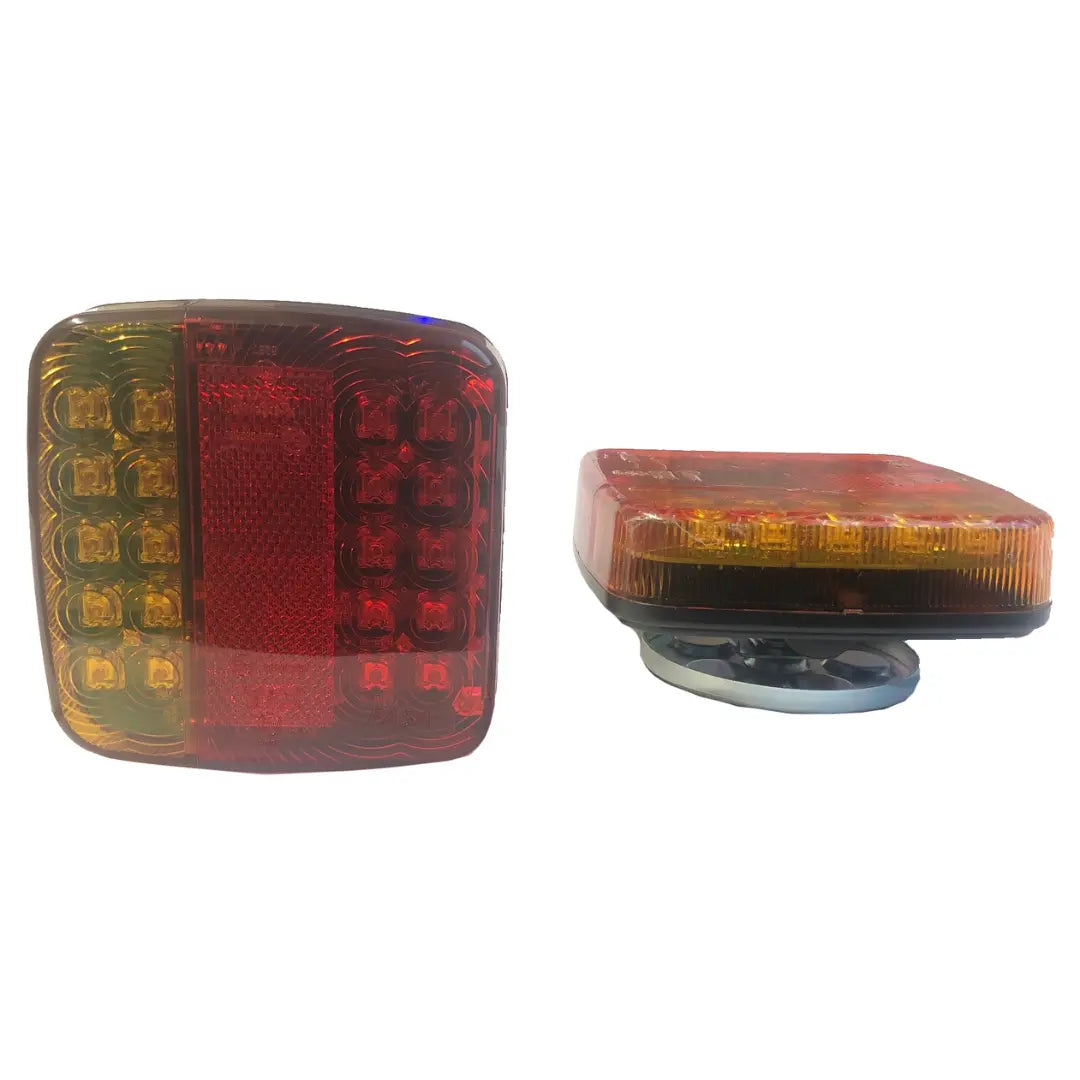

Each lamp measures 105 mm × 105 mm × 55 mm and is mounted magnetically for quick installation. The enclosure is IP65 rated, allowing operation in rain and dust. The unit tolerates temperatures from ‑20 °C to +50 °C and delivers 10 hours of light at full charge, 5 hours at 50 % capacity, and 2 hours at 25 % capacity. Standby time reaches 20 hours.

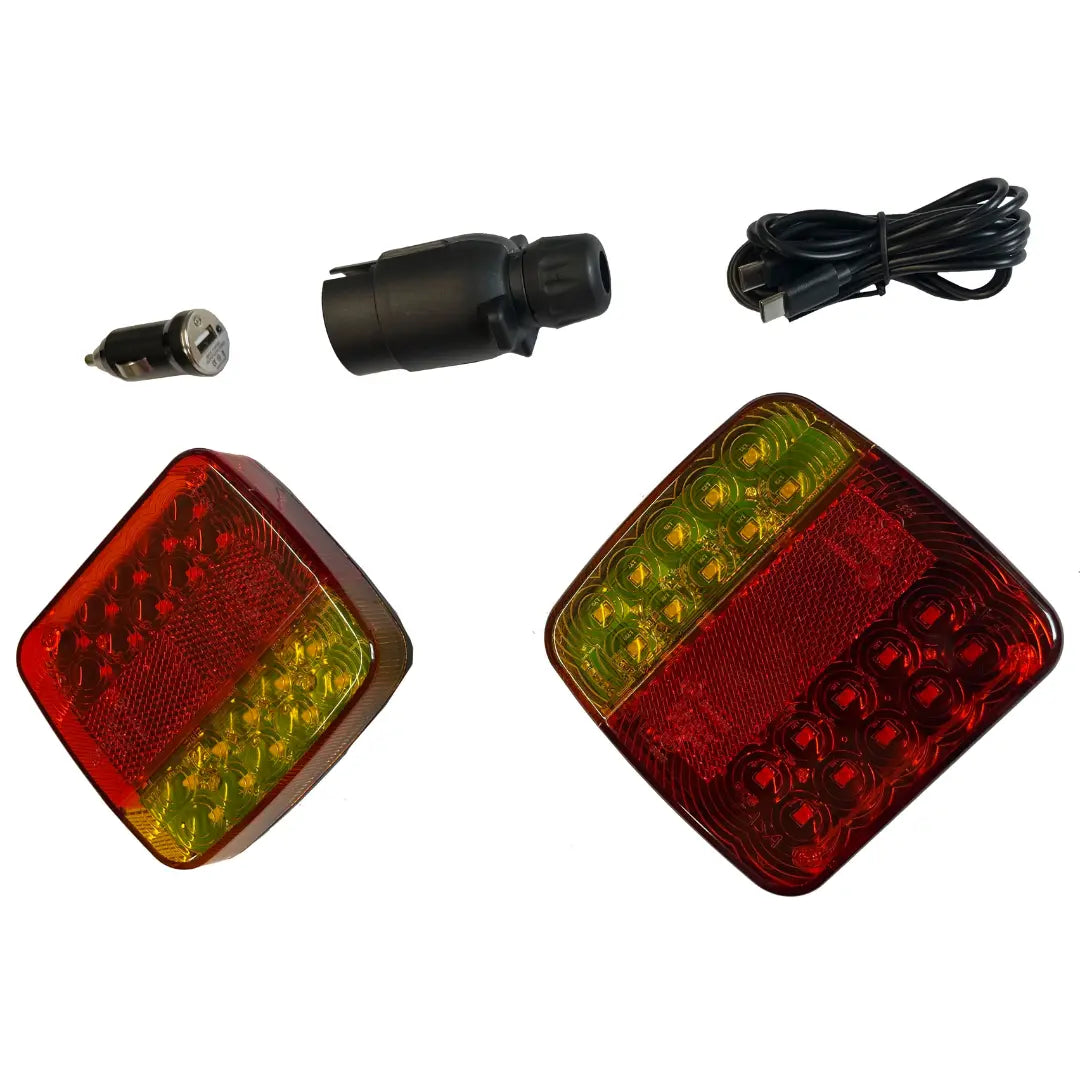

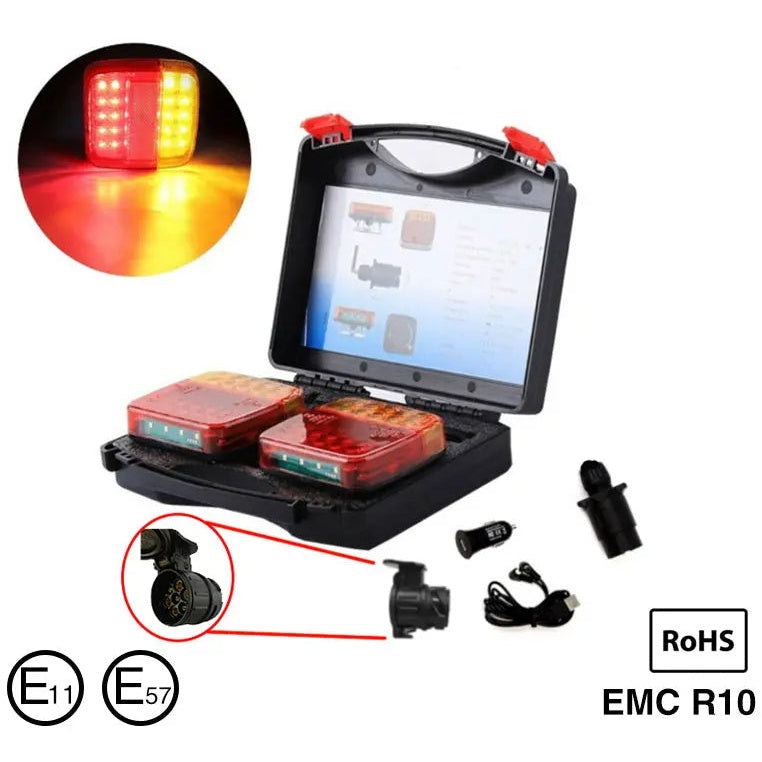

The lamp uses a 7‑pin connector for secure electrical contact. Charging takes 2.5 hours via USB. The kit is compatible with standard 12 V/24 V trailer wiring and can be integrated into existing lighting systems without additional adapters.

Specifications

Frequently Asked Questions

What voltage range does the lamp set support?

The lamp set operates on 12 V or 24 V DC.

What is the wireless frequency and range of the system?

The system uses a 2.4 GHz wireless link with a range of 30 meters.

What is the battery life when fully charged?

A full charge provides 10 hours of operation.
